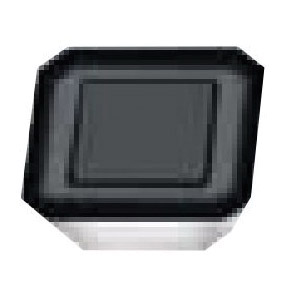

Valenite Tiger-tec® Silver 5917765 Positive Single Sided Indexable Milling Insert, SEKR42AFTN WKP35S ANSI, Square
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 5917765 Positive Single Sided Indexable Milling Insert, SEKR42AFTN WKP35S ANSI, Square
SKUPDW~9957975
MFGR #SEKR42AFTNWKP35S
Your Cost: $35.48/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code SEKR42AFTN WKP35S Brand Walter (Valentine) Catalog Number SEKR42AFTNWKP35S Country of Origin DE Finish CVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral Inscribed Circle 12.7 mm Insert Style Tiger?tec® Silver ISO Code SEKR1203AFTN WKP35S Manufacturer Walter Manufacturer's Grade WKP35S Material Carbide Material Grade K/P Rake 16 deg Shape Square Stock Status NONSTOCK Sub Brand Tiger-tec® Type Positive Single Sided Width 12.7 mm F57 Geometry - The universal one For good machining conditions Low cutting force Medium feed rates Two waves on the flank face +/-0.013 mm cutting edge tolerance 0.05 to 0.15 mm inscribed circle tolerance +/-0.025 mm thickness tolerance 1.9 mm width face chamfer 4 cutting edges 45 deg approach
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | SEKR42AFTN WKP35S |
| Brand | Walter (Valentine) |
| Catalog Number | SEKR42AFTNWKP35S |
| Country of Origin | DE |
| Finish | CVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| Inscribed Circle | 12.7 mm |
| Insert Style | Tiger?tec® Silver |
| ISO Code | SEKR1203AFTN WKP35S |
| Manufacturer | Walter |
| Manufacturer's Grade | WKP35S |
| Material | Carbide |
| Material Grade | K/P |
| Rake | 16 deg |
| Shape | Square |
| Stock Status | NONSTOCK |
| Sub Brand | Tiger-tec® |
| Type | Positive Single Sided |
| Width | 12.7 mm |
| F57 Geometry - The universal one |
| For good machining conditions |
| Low cutting force |
| Medium feed rates |
| Two waves on the flank face |
| +/-0.013 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.025 mm thickness tolerance |
| 1.9 mm width face chamfer |
| 4 cutting edges |
| 45 deg approach |
