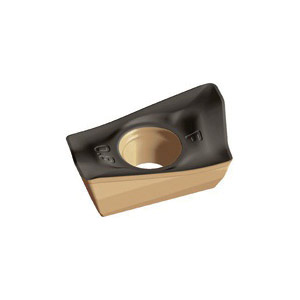

Valenite Tiger-tec® Silver 5886208 Positive Single Sided Indexable Milling Insert, ADMT080308R-F56 WKP35S ANSI, Rhombic
Custom_Product_Images_Illustration
Valenite Tiger-tec® Silver 5886208 Positive Single Sided Indexable Milling Insert, ADMT080308R-F56 WKP35S ANSI, Rhombic
SKUPDW~9940968
MFGR #ADMT080308R-F56WKP35S
Your Cost: $32.53/ea
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
ANSI Code ADMT080308R-F56 WKP35S Catalog Number ADMT080308R-F56WKP35S Corner Radius 0.8 mm Country of Origin DE Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 1 lb Hand of Insert Right Hole Diameter 2.8 mm ISO Code ADMT080308R-F56 WKP35S Lead Angle 15/20 ° Length 9.52 mm Material Application Cast Iron and Steel Series Tiger?tec® Silver Sub Brand Tiger-tec® Thickness 3.18 mm Type Single Sided Width 6.75 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker F56 Inscribed Circle 6.75 mm Insert Size 080308 Insert Style ADMT Manufacturer's Grade WKP35S Material Carbide Material Grade K, P Rake Positive Shape Rhombic Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection For medium machining conditions Universal application for most materials 0.08 to 0.2 mm cutting edge tolerance 0.05 to 0.15 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 1.2 mm width face chamfer 2 cutting edges 40 to 60 deg double countersink hole
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | ADMT080308R-F56 WKP35S |
| Catalog Number | ADMT080308R-F56WKP35S |
| Corner Radius | 0.8 mm |
| Country of Origin | DE |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 1 lb |
| Hand of Insert | Right |
| Hole Diameter | 2.8 mm |
| ISO Code | ADMT080308R-F56 WKP35S |
| Lead Angle | 15/20 ° |
| Length | 9.52 mm |
| Material Application | Cast Iron and Steel |
| Series | Tiger?tec® Silver |
| Sub Brand | Tiger-tec® |
| Thickness | 3.18 mm |
| Type | Single Sided |
| Width | 6.75 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | F56 |
| Inscribed Circle | 6.75 mm |
| Insert Size | 080308 |
| Insert Style | ADMT |
| Manufacturer's Grade | WKP35S |
| Material | Carbide |
| Material Grade | K, P |
| Rake | Positive |
| Shape | Rhombic |
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection |
| For medium machining conditions |
| Universal application for most materials |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.2 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
