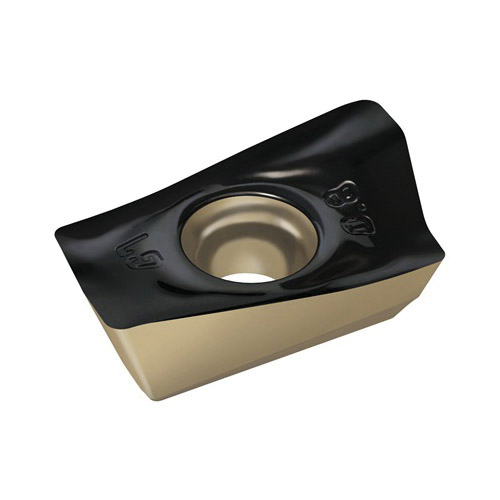

Valenite Tiger-tec® Silver 5881321 Positive Single Sided Indexable Milling Insert, ADGT10T3PER-D67 WKP35S ANSI, Rhombic

ADGT Milling Inserts
PDW~9940764 MFG #: ADGT10T3PER-D67WKP35S
Walter (Valentine)
26.90000 / ea
Walter_Valenite_5639529
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
QTY
Add to Wishlist
  • Features
Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection
High cutting edge stability
For machining high alloy and high tensile steels and Ni-based alloys
High level of accuracy
+/-0.025 mm cutting edge tolerance
+/-0.025 mm inscribed circle tolerance
+/-0.13 mm thickness tolerance
1.2 mm width face chamfer
2 cutting edges
40 to 60 deg double countersink hole
90 deg approach
