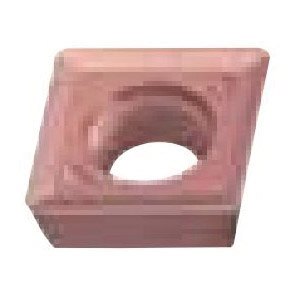

Valenite Tiger-tec® Silver 5022037 Positive Indexable Milling Insert, MPHX080305-G88 WXN15 ANSI, Rhombic, MPHX Insert

MPHX Milling Inserts
PDW~9952602 MFG #: MPHX080305-G88WXN15
Walter (Valentine)
18.80000 / ea
Walter_Valenite_5022037
With Tiger-tec® Silver, Walter is offering a world first in coating technology for indexable inserts. The special aluminium oxide layer with optimized microstructure reduces wear during turning, milling and drilling operations, and increases toughness and temperature resistance for significantly higher cutting data.
QTY
Add to Wishlist
  • Features
Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance|Silver flank face indicator layer for extremely easy wear detection
For machining aluminum
Low cutting force
Sharp cutting edges
Three waves on the flank face
+/-0.013 mm cutting edge tolerance
+/-0.013 mm inscribed circle tolerance
+/-0.025 mm thickness tolerance
2 cutting edges
