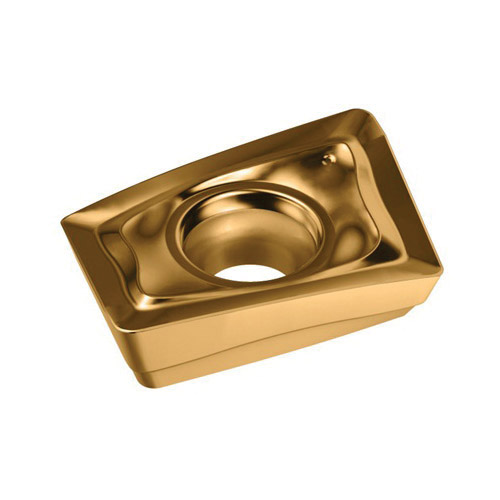

Valenite Tiger-tec® Gold 7169066 Positive Single Sided Indexable Milling Insert, LDMT170408R-D51 WKP35G ANSI, Rhombic
LDMT Milling Inserts
PDW~12584260
MFG #: LDMT170408R-D51WKP35G
Walter (Valentine)
28.20000
/ ea
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
- Features
| Mechanical post-treatment - unique residual stress condition, increased process reliability|Extremely smooth rake face for optimum tribochemical wear resistance |
| Ant-vibration geometry |
| For tools with extended tool projection |
| Optimized wear characteristics for a significantly longer tool life |
| Optimum cutting data due to a reduction in visible wear rate |
| Maximum process reliability thanks to the tough cutting edge |
| Gold colored top layer provides optimum wear detection |
| Excellent combination of wear resistance and toughness for milling |
| For moderate to high cutting speeds, dry milling or use with coolant, roughing steel and cast iron workpieces |
| 0.08 to 0.2 mm cutting edge tolerance |
| 0.05 to 0.15 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.6 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
