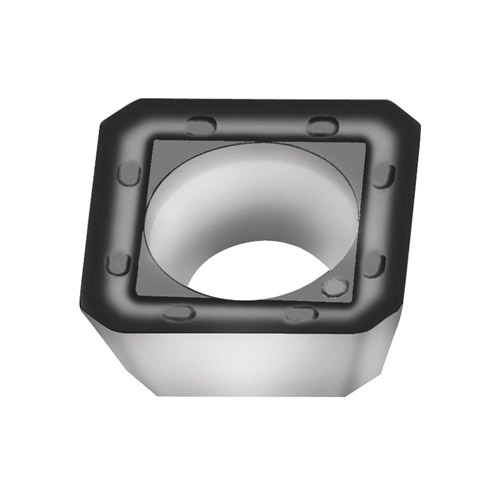

Valenite Tiger-tec® Gold 7021676 Positive Single Sided Indexable Milling Insert, SDGT09T3AZN-F57 WAK15 ANSI, Square
SDGT Milling Inserts
PDW~12584727
MFG #: SDGT09T3AZN-F57WAK15
Walter (Valentine)
18.70000
/ ea
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
- Features
| F57 Geometry - The universal one |
| For good machining conditions |
| Low cutting force |
| Medium feed rates |
| Two waves on the flank face |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.4 mm width face chamfer |
| 4 cutting edges |
| 40 to 60 deg double countersink hole |
| 45 deg approach |
