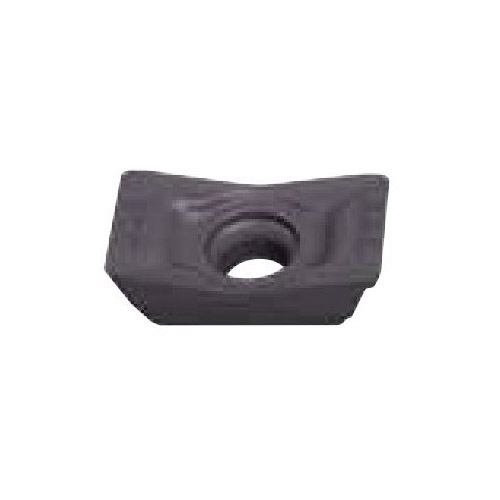

Valenite Tiger-tec® 6632443 Indexable Milling Insert, ADGX1606PER-F56 WHH15 ANSI, 85 deg Parallelogram, ADGX Insert
Custom_Product_Images_Illustration
Valenite Tiger-tec® 6632443 Indexable Milling Insert, ADGX1606PER-F56 WHH15 ANSI, 85 deg Parallelogram, ADGX Insert
SKUPDW~12064533
MFGR #ADGX1606PER-F56WHH15
Your Cost: $57.80/ea
VALENITE Tiger-tec® Indexable Milling Insert, ADGX Insert, 85 deg Parallelogram, 10.8 mm Inscribed Circle, 6.15 mm Thickness, 10.8 mm Width, 17.5 mm Length, F56 Chipbreaker, 0.8 mm Corner Radius, 16 deg Rake, 15 deg Lead Angle, 4.4 mm Hole Dia, Manufacturer's Grade: WHH15, ANSI Code: ADGX1606PER-F56 WHH15, ISO Code: ADGX1606PER-F56 WHH15, Right Hand, Carbide, PVD Coated, Material Grade: H
VALENITE Tiger-tec® Indexable Milling Insert, ADGX Insert, 85 deg Parallelogram, 10.8 mm Inscribed Circle, 6.15 mm Thickness, 10.8 mm Width, 17.5 mm Length, F56 Chipbreaker, 0.8 mm Corner Radius, 16 deg Rake, 15 deg Lead Angle, 4.4 mm Hole Dia, Manufacturer's Grade: WHH15, ANSI Code: ADGX1606PER-F56 WHH15, ISO Code: ADGX1606PER-F56 WHH15, Right Hand, Carbide, PVD Coated, Material Grade: H
ANSI Code ADGX1606PER-F56 WHH15 Catalog Number ADGX1606PER-F56WHH15 Corner Radius 0.8 mm Country of Origin DE Finish PVD-TiAlN Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Right Hole Diameter 4.4 mm ISO Code ADGX1606PER-F56 WHH15 Lead Angle 15 ° Length 17.5 mm Material Application Hardened Steel, Hardened Cast Iron Materials and Chilled Cast Iron Series Tiger?tec® Sub Brand Tiger-tec® Thickness 6.15 mm Width 10.8 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker F56 Inscribed Circle 10.8 mm Insert Size 1606 Insert Style ADGX Manufacturer's Grade WHH15 Material Carbide Material Grade H Rake Positive Shape 85 deg Parallelogram F56 Geometry - The universal one For medium machining conditions Universal application for most materials +/-0.025 mm cutting edge tolerance +/-0.025 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 8 mm width face chamfer 2 cutting edges 90 deg approach
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | ADGX1606PER-F56 WHH15 |
| Catalog Number | ADGX1606PER-F56WHH15 |
| Corner Radius | 0.8 mm |
| Country of Origin | DE |
| Finish | PVD-TiAlN Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Right |
| Hole Diameter | 4.4 mm |
| ISO Code | ADGX1606PER-F56 WHH15 |
| Lead Angle | 15 ° |
| Length | 17.5 mm |
| Material Application | Hardened Steel, Hardened Cast Iron Materials and Chilled Cast Iron |
| Series | Tiger?tec® |
| Sub Brand | Tiger-tec® |
| Thickness | 6.15 mm |
| Width | 10.8 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | F56 |
| Inscribed Circle | 10.8 mm |
| Insert Size | 1606 |
| Insert Style | ADGX |
| Manufacturer's Grade | WHH15 |
| Material | Carbide |
| Material Grade | H |
| Rake | Positive |
| Shape | 85 deg Parallelogram |
| F56 Geometry - The universal one |
| For medium machining conditions |
| Universal application for most materials |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 8 mm width face chamfer |
| 2 cutting edges |
| 90 deg approach |
