Walter (Valentine)

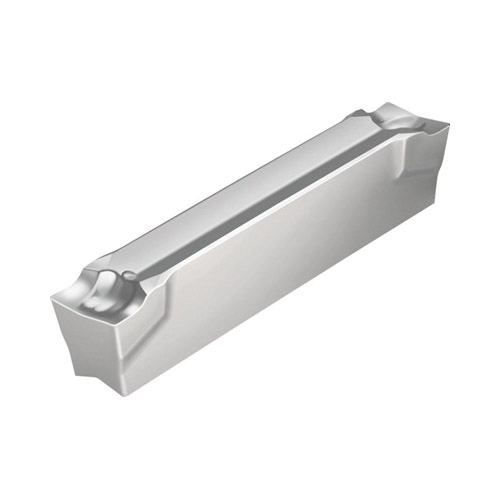

Valenite 7178820 Cut-Off Double Sided Grooving Insert, GX16-1E200N02-CK8 WK1 ANSI, E, GX Insert, 2 mm W Cutting, WK1
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 7178820 Cut-Off Double Sided Grooving Insert, GX16-1E200N02-CK8 WK1 ANSI, E, GX Insert, 2 mm W Cutting, WK1
SKUPDW~12584223
MFGR #GX16-1E200N02-CK8WK1
$/ea
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 2 mm Cutting Width, CK8 Chipbreaker, 0.2 mm Corner Radius, 16.6 mm Length, Manufacturer's Grade: WK1, ANSI Code: GX16-1E200N02-CK8 WK1, ISO Code: GX16-1E200N02-CK8 WK1, Neutral Hand, Carbide, Uncoated, Material Grade: N/O/S
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 2 mm Cutting Width, CK8 Chipbreaker, 0.2 mm Corner Radius, 16.6 mm Length, Manufacturer's Grade: WK1, ANSI Code: GX16-1E200N02-CK8 WK1, ISO Code: GX16-1E200N02-CK8 WK1, Neutral Hand, Carbide, Uncoated, Material Grade: N/O/S
ANSI Code GX16-1E200N02-CK8 WK1 Catalog Number GX16-1E200N02-CK8WK1 Finish Uncoated Gross Weight Per Pack 1 lb ISO Code GX16-1E200N02-CK8 WK1 Length 16.6 mm Material Grade N, S Series Tiger?tec® Silver Type Cut-Off Double Edged Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker CK8 Corner Radius 0.2 mm Cutting Direction Neutral Cutting Width 2.0000 mm Insert Style GX16 Manufacturer's Grade WK1 Material Carbide Maximum Depth of Cut 15 mm Rake Positive Light to moderate feeds|Good chip control|Low burr/center pip formation|Polished rake face For small and moderate feeds Polished rake face +/-0.02 mm cutting width tolerance +/-0.025 mm cutting length tolerance 0.04 to 0.12 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX16-1E200N02-CK8 WK1 |
| Catalog Number | GX16-1E200N02-CK8WK1 |
| Finish | Uncoated |
| Gross Weight Per Pack | 1 lb |
| ISO Code | GX16-1E200N02-CK8 WK1 |
| Length | 16.6 mm |
| Material Grade | N, S |
| Series | Tiger?tec® Silver |
| Type | Cut-Off Double Edged |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | CK8 |
| Corner Radius | 0.2 mm |
| Cutting Direction | Neutral |
| Cutting Width | 2.0000 mm |
| Insert Style | GX16 |
| Manufacturer's Grade | WK1 |
| Material | Carbide |
| Maximum Depth of Cut | 15 mm |
| Rake | Positive |
| Light to moderate feeds|Good chip control|Low burr/center pip formation|Polished rake face |
| For small and moderate feeds |
| Polished rake face |
| +/-0.02 mm cutting width tolerance |
| +/-0.025 mm cutting length tolerance |
| 0.04 to 0.12 mm feed/rev |
