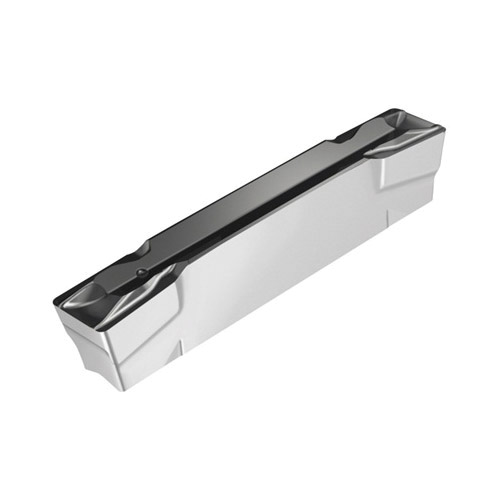

Valenite 6955193 Double Sided Universal Grooving Insert, GX24-2E300N04-UF8 WSM23S ANSI, E, GX Insert, 3 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6955193 Double Sided Universal Grooving Insert, GX24-2E300N04-UF8 WSM23S ANSI, E, GX Insert, 3 mm W Cutting
SKUPDW~12584237
MFGR #GX24-2E300N04-UF8WSM23S
$/ea
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, UF8 Chipbreaker, 0.4 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX24-2E300N04-UF8 WSM23S, ISO Code: GX24-2E300N04-UF8 WSM23S, Neutral Hand, Carbide, PVD Coated
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, UF8 Chipbreaker, 0.4 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX24-2E300N04-UF8 WSM23S, ISO Code: GX24-2E300N04-UF8 WSM23S, Neutral Hand, Carbide, PVD Coated
ANSI Code GX24-2E300N04-UF8 WSM23S Catalog Number GX24-2E300N04-UF8WSM23S Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 1 lb ISO Code GX24-2E300N04-UF8 WSM23S Length 24 mm Material Grade M, P, S Series Tiger?tec® Silver Type Double Edged Universal Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker UF8 Corner Radius 0.4 mm Cutting Direction Neutral Cutting Width 3.0000 mm Insert Style GX24 Manufacturer's Grade WSM23S Material Carbide Maximum Depth of Cut 1.5 mm Rake Positive Excellent chip control|Low to average feed range +/-0.02 mm cutting width tolerance +/-0.025 mm cutting length tolerance 0.07 to 0.24 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-2E300N04-UF8 WSM23S |
| Catalog Number | GX24-2E300N04-UF8WSM23S |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 1 lb |
| ISO Code | GX24-2E300N04-UF8 WSM23S |
| Length | 24 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Double Edged Universal |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | UF8 |
| Corner Radius | 0.4 mm |
| Cutting Direction | Neutral |
| Cutting Width | 3.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WSM23S |
| Material | Carbide |
| Maximum Depth of Cut | 1.5 mm |
| Rake | Positive |
| Excellent chip control|Low to average feed range |
| +/-0.02 mm cutting width tolerance |
| +/-0.025 mm cutting length tolerance |
| 0.07 to 0.24 mm feed/rev |
