Walter (Valentine)

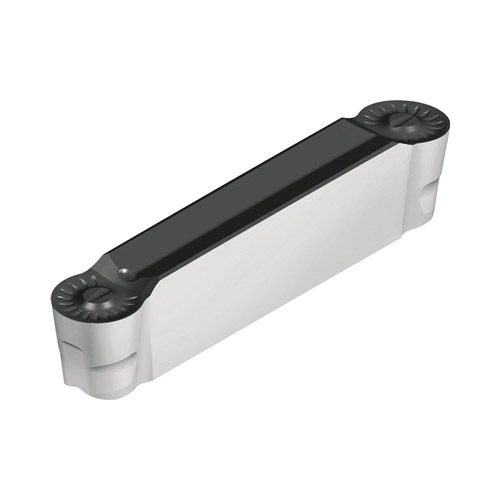

Valenite 6913876 Double Sided Full Radius Grooving Insert, GX24-4E635N32-RF8 WSM23S ANSI, E, GX Insert, WSM23S
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6913876 Double Sided Full Radius Grooving Insert, GX24-4E635N32-RF8 WSM23S ANSI, E, GX Insert, WSM23S
SKUPDW~12066219
MFGR #GX24-4E635N32-RF8WSM23S
$/ea
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 6.35 mm Cutting Width, 3 mm Maximum Depth of Cut, 10 deg Lead Angle, RF8 Chipbreaker, 3.18 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX24-4E635N32-RF8 WSM23S, ISO Code: GX24-4E635N32-RF8 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 6.35 mm Cutting Width, 3 mm Maximum Depth of Cut, 10 deg Lead Angle, RF8 Chipbreaker, 3.18 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX24-4E635N32-RF8 WSM23S, ISO Code: GX24-4E635N32-RF8 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
ANSI Code GX24-4E635N32-RF8 WSM23S Catalog Number GX24-4E635N32-RF8WSM23S Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 0.0200 lb ISO Code GX24-4E635N32-RF8 WSM23S Length 24 mm Material Grade M, P, S Series Tiger?tec® Silver Type Double Edged Full Radius Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker RF8 Corner Radius 3.18 mm Cutting Direction Neutral Cutting Width 6.0000 mm Insert Style GX24 Manufacturer's Grade WSM23S Material Carbide Maximum Depth of Cut 3 mm Rake Positive Circumference fully ground|High surface quality|Stable cutting edge High surface quality Stable cutting edge 21 mm maximum depth of cut +/-0.02 mm cutting width tolerance +/-0.02 mm cutting length tolerance 2 cutting edges 0.15 to 0.55 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-4E635N32-RF8 WSM23S |
| Catalog Number | GX24-4E635N32-RF8WSM23S |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 0.0200 lb |
| ISO Code | GX24-4E635N32-RF8 WSM23S |
| Length | 24 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Double Edged Full Radius |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | RF8 |
| Corner Radius | 3.18 mm |
| Cutting Direction | Neutral |
| Cutting Width | 6.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WSM23S |
| Material | Carbide |
| Maximum Depth of Cut | 3 mm |
| Rake | Positive |
| Circumference fully ground|High surface quality|Stable cutting edge |
| High surface quality |
| Stable cutting edge |
| 21 mm maximum depth of cut |
| +/-0.02 mm cutting width tolerance |
| +/-0.02 mm cutting length tolerance |
| 2 cutting edges |
| 0.15 to 0.55 mm feed/rev |
