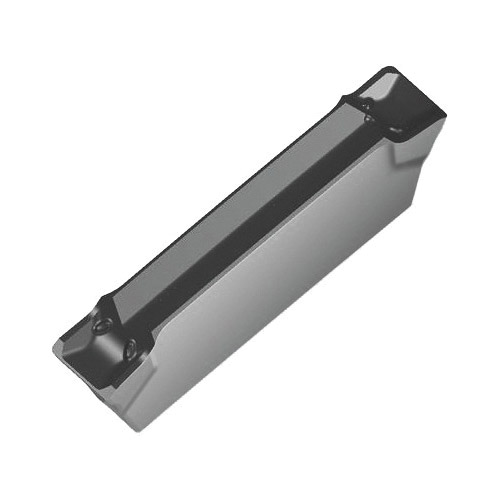

Valenite 6738347 Cut-Off Double Sided Grooving Insert, GX24-3E400N03-CE4 WSM23S ANSI, E, GX Insert, 4 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6738347 Cut-Off Double Sided Grooving Insert, GX24-3E400N03-CE4 WSM23S ANSI, E, GX Insert, 4 mm W Cutting
SKUPDW~12066169
MFGR #GX24-3E400N03-CE4WSM23S
$/ea
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 4 mm Cutting Width, 10 deg Lead Angle, CE4 Chipbreaker, 0.3 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX24-3E400N03-CE4 WSM23S, ISO Code: GX24-3E400N03-CE4 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: H/K/M/N/P/S
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 4 mm Cutting Width, 10 deg Lead Angle, CE4 Chipbreaker, 0.3 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX24-3E400N03-CE4 WSM23S, ISO Code: GX24-3E400N03-CE4 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: H/K/M/N/P/S
ANSI Code GX24-3E400N03-CE4 WSM23S Catalog Number GX24-3E400N03-CE4WSM23S Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 0.0100 lb ISO Code GX24-3E400N03-CE4 WSM23S Length 24 mm Material Grade M, P, S Series Tiger?tec® Silver Type Double Edged Cut-Off Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker CE4 Corner Radius 0.3 mm Cutting Direction Neutral Cutting Width 4.0000 mm Insert Style GX24 Manufacturer's Grade WSM23S Material Carbide Maximum Depth of Cut 23.6 mm Rake Positive Moderate to high feeds|Good chip constriction|Stable cutting edge Moderate to high feed rates Excellent chip constriction Stable cutting edge 21 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.1 to 0.32 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-3E400N03-CE4 WSM23S |
| Catalog Number | GX24-3E400N03-CE4WSM23S |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 0.0100 lb |
| ISO Code | GX24-3E400N03-CE4 WSM23S |
| Length | 24 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Double Edged Cut-Off |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | CE4 |
| Corner Radius | 0.3 mm |
| Cutting Direction | Neutral |
| Cutting Width | 4.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WSM23S |
| Material | Carbide |
| Maximum Depth of Cut | 23.6 mm |
| Rake | Positive |
| Moderate to high feeds|Good chip constriction|Stable cutting edge |
| Moderate to high feed rates |
| Excellent chip constriction |
| Stable cutting edge |
| 21 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.1 to 0.32 mm feed/rev |
