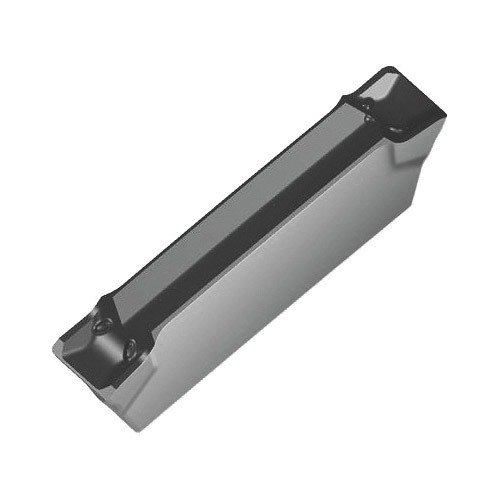

Valenite 6738344 Cut-Off Double Sided Grooving Insert, GX16-2E300N02-CE4 WSM23S ANSI, E, GX Insert, 3 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6738344 Cut-Off Double Sided Grooving Insert, GX16-2E300N02-CE4 WSM23S ANSI, E, GX Insert, 3 mm W Cutting
SKUPDW~12066102
MFGR #GX16-2E300N02-CE4WSM23S
$/ea
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 3 mm Cutting Width, 21 deg Lead Angle, CE4 Chipbreaker, 0.2 mm Corner Radius, 16.6 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX16-2E300N02-CE4 WSM23S, ISO Code: GX16-2E300N02-CE4 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: H/K/M/N/P/S
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 3 mm Cutting Width, 21 deg Lead Angle, CE4 Chipbreaker, 0.2 mm Corner Radius, 16.6 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX16-2E300N02-CE4 WSM23S, ISO Code: GX16-2E300N02-CE4 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: H/K/M/N/P/S
ANSI Code GX16-2E300N02-CE4 WSM23S Catalog Number GX16-2E300N02-CE4WSM23S Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 0.0100 lb ISO Code GX16-2E300N02-CE4 WSM23S Length 16.6 mm Material Grade M, P, S Series Tiger?tec® Silver Type Cut-Off Double Edged Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker CE4 Corner Radius 0.2 mm Cutting Direction Neutral Cutting Width 3.0000 mm Insert Style GX16 Manufacturer's Grade WSM23S Material Carbide Maximum Depth of Cut 16.3 mm Rake Positive Moderate to high feeds|Good chip constriction|Stable cutting edge Moderate to high feed rates Excellent chip constriction Stable cutting edge 12 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.09 to 0.3 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX16-2E300N02-CE4 WSM23S |
| Catalog Number | GX16-2E300N02-CE4WSM23S |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 0.0100 lb |
| ISO Code | GX16-2E300N02-CE4 WSM23S |
| Length | 16.6 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Cut-Off Double Edged |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | CE4 |
| Corner Radius | 0.2 mm |
| Cutting Direction | Neutral |
| Cutting Width | 3.0000 mm |
| Insert Style | GX16 |
| Manufacturer's Grade | WSM23S |
| Material | Carbide |
| Maximum Depth of Cut | 16.3 mm |
| Rake | Positive |
| Moderate to high feeds|Good chip constriction|Stable cutting edge |
| Moderate to high feed rates |
| Excellent chip constriction |
| Stable cutting edge |
| 12 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.09 to 0.3 mm feed/rev |
