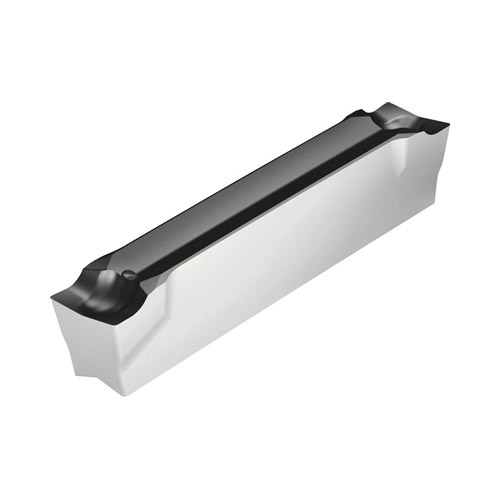

Valenite 6738340 Cut-Off Double Sided Grooving Insert, GX24-1E200N02-CF5 WSM23S ANSI, E, GX Insert, 2 mm W Cutting
Custom_Product_Images_Illustration
Valenite 6738340 Cut-Off Double Sided Grooving Insert, GX24-1E200N02-CF5 WSM23S ANSI, E, GX Insert, 2 mm W Cutting
SKUPDW~12066136
MFGR #GX24-1E200N02-CF5WSM23S
$/ea
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 2 mm Cutting Width, 10 deg Lead Angle, CF5 Chipbreaker, 0.2 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX24-1E200N02-CF5 WSM23S, ISO Code: GX24-1E200N02-CF5 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/N/O/P/S
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 2 mm Cutting Width, 10 deg Lead Angle, CF5 Chipbreaker, 0.2 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX24-1E200N02-CF5 WSM23S, ISO Code: GX24-1E200N02-CF5 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/N/O/P/S
ANSI Code GX24-1E200N02-CF5 WSM23S Catalog Number GX24-1E200N02-CF5WSM23S Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 0.0100 lb ISO Code GX24-1E200N02-CF5 WSM23S Length 24 mm Material Grade M, P, S Series Tiger?tec® Silver Type Double Edged Cut-Off Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker CF5 Corner Radius 0.2 mm Cutting Direction Neutral Cutting Width 2.0000 mm Insert Style GX24 Manufacturer's Grade WSM23S Material Carbide Maximum Depth of Cut 23.7 mm Rake Positive Light to moderate feeds|Good chip control|Low burr/center pip formation Light to moderate feed rates Good chip control Low burr/center pip formation +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.04 to 0.12 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-1E200N02-CF5 WSM23S |
| Catalog Number | GX24-1E200N02-CF5WSM23S |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 0.0100 lb |
| ISO Code | GX24-1E200N02-CF5 WSM23S |
| Length | 24 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Double Edged Cut-Off |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | CF5 |
| Corner Radius | 0.2 mm |
| Cutting Direction | Neutral |
| Cutting Width | 2.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WSM23S |
| Material | Carbide |
| Maximum Depth of Cut | 23.7 mm |
| Rake | Positive |
| Light to moderate feeds|Good chip control|Low burr/center pip formation |
| Light to moderate feed rates |
| Good chip control |
| Low burr/center pip formation |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.04 to 0.12 mm feed/rev |
