Walter (Valentine)

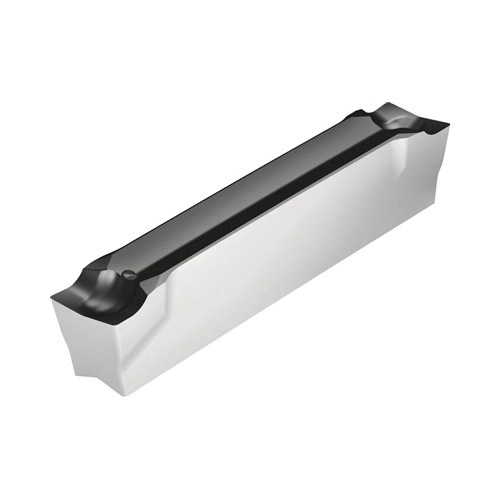

Valenite 6738339 Cut-Off Double Sided Grooving Insert, GX16-2E300N02-CF5 WSM23S ANSI, E, GX Insert, 3 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6738339 Cut-Off Double Sided Grooving Insert, GX16-2E300N02-CF5 WSM23S ANSI, E, GX Insert, 3 mm W Cutting
SKUPDW~12066103
MFGR #GX16-2E300N02-CF5WSM23S
$/ea
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 3 mm Cutting Width, 21 deg Lead Angle, CF5 Chipbreaker, 0.2 mm Corner Radius, 16.6 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX16-2E300N02-CF5 WSM23S, ISO Code: GX16-2E300N02-CF5 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/N/O/P/S
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 3 mm Cutting Width, 21 deg Lead Angle, CF5 Chipbreaker, 0.2 mm Corner Radius, 16.6 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX16-2E300N02-CF5 WSM23S, ISO Code: GX16-2E300N02-CF5 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/N/O/P/S
ANSI Code GX16-2E300N02-CF5 WSM23S Catalog Number GX16-2E300N02-CF5WSM23S Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 0.0100 lb ISO Code GX16-2E300N02-CF5 WSM23S Length 16.6 mm Material Grade M, P, S Series Tiger?tec® Silver Type Cut-Off Double Edged Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker CF5 Corner Radius 0.2 mm Cutting Direction Neutral Cutting Width 3.0000 mm Insert Style GX16 Manufacturer's Grade WSM23S Material Carbide Maximum Depth of Cut 16.3 mm Rake Positive Light to moderate feeds|Good chip control|Low burr/center pip formation Light to moderate feed rates Good chip control Low burr/center pip formation +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.08 to 0.2 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX16-2E300N02-CF5 WSM23S |
| Catalog Number | GX16-2E300N02-CF5WSM23S |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 0.0100 lb |
| ISO Code | GX16-2E300N02-CF5 WSM23S |
| Length | 16.6 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Cut-Off Double Edged |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | CF5 |
| Corner Radius | 0.2 mm |
| Cutting Direction | Neutral |
| Cutting Width | 3.0000 mm |
| Insert Style | GX16 |
| Manufacturer's Grade | WSM23S |
| Material | Carbide |
| Maximum Depth of Cut | 16.3 mm |
| Rake | Positive |
| Light to moderate feeds|Good chip control|Low burr/center pip formation |
| Light to moderate feed rates |
| Good chip control |
| Low burr/center pip formation |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.08 to 0.2 mm feed/rev |
