Walter (Valentine)
Valenite 6677491 Double Sided Full Radius Grooving Insert, GX24-3E500N250-RF8 WSM13 ANSI, E, GX Insert, 5 mm W Cutting

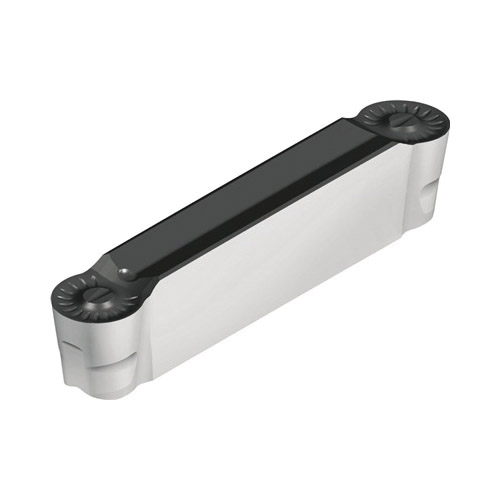

Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6677491 Double Sided Full Radius Grooving Insert, GX24-3E500N250-RF8 WSM13 ANSI, E, GX Insert, 5 mm W Cutting
SKUPDW~12066200
MFGR #GX24-3E500N250-RF8WSM13
$/ea
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 5 mm Cutting Width, 2.5 mm Maximum Depth of Cut, 10 deg Lead Angle, RF8 Chipbreaker, 2.5 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM13, ANSI Code: GX24-3E500N250-RF8 WSM13, ISO Code: GX24-3E500N250-RF8 WSM13, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 5 mm Cutting Width, 2.5 mm Maximum Depth of Cut, 10 deg Lead Angle, RF8 Chipbreaker, 2.5 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM13, ANSI Code: GX24-3E500N250-RF8 WSM13, ISO Code: GX24-3E500N250-RF8 WSM13, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
ANSI Code GX24-3E500N250-RF8 WSM13 Catalog Number GX24-3E500N250-RF8WSM13 Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 0.0200 lb ISO Code GX24-3E500N250-RF8 WSM13 Length 24 mm Material Grade M, P, S Series Tiger?tec® Silver Type Double Edged Full Radius Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker RF8 Corner Radius 2.5 mm Cutting Direction Neutral Cutting Width 5.0000 mm Insert Style GX24 Manufacturer's Grade WSM13 Material Carbide Maximum Depth of Cut 2.5 mm Rake Positive Circumference fully ground|High surface quality|Stable cutting edge High surface quality Stable cutting edge +/-0.02 mm cutting width tolerance +/-0.02 mm cutting length tolerance 2 cutting edges 0.15 to 0.5 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-3E500N250-RF8 WSM13 |
| Catalog Number | GX24-3E500N250-RF8WSM13 |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 0.0200 lb |
| ISO Code | GX24-3E500N250-RF8 WSM13 |
| Length | 24 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Double Edged Full Radius |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | RF8 |
| Corner Radius | 2.5 mm |
| Cutting Direction | Neutral |
| Cutting Width | 5.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WSM13 |
| Material | Carbide |
| Maximum Depth of Cut | 2.5 mm |
| Rake | Positive |
| Circumference fully ground|High surface quality|Stable cutting edge |
| High surface quality |
| Stable cutting edge |
| +/-0.02 mm cutting width tolerance |
| +/-0.02 mm cutting length tolerance |
| 2 cutting edges |
| 0.15 to 0.5 mm feed/rev |
