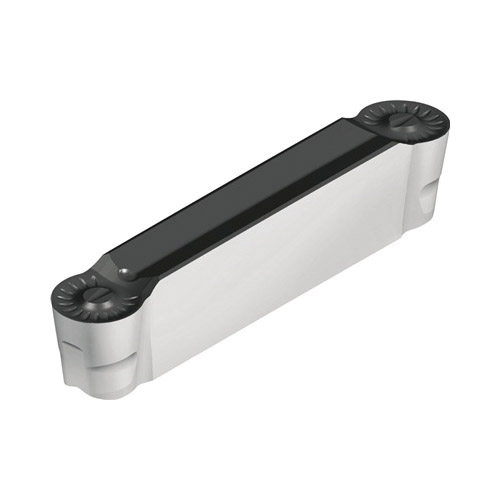

Valenite 6641660 Double Sided Full Radius Grooving Insert, GX30-5E800N40-RF8 WSM23S ANSI, E, GX Insert, 8 mm W Cutting
Custom_Product_Images_Illustration
Valenite 6641660 Double Sided Full Radius Grooving Insert, GX30-5E800N40-RF8 WSM23S ANSI, E, GX Insert, 8 mm W Cutting
SKUPDW~12066235
MFGR #GX30-5E800N40-RF8WSM23S
Your Cost: $95.16/ea
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 8 mm Cutting Width, 4.5 mm Maximum Depth of Cut, 10 deg Lead Angle, RF8 Chipbreaker, 4 mm Corner Radius, 30 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX30-5E800N40-RF8 WSM23S, ISO Code: GX30-5E800N40-RF8 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 8 mm Cutting Width, 4.5 mm Maximum Depth of Cut, 10 deg Lead Angle, RF8 Chipbreaker, 4 mm Corner Radius, 30 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX30-5E800N40-RF8 WSM23S, ISO Code: GX30-5E800N40-RF8 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
ANSI Code GX30-5E800N40-RF8 WSM23S Catalog Number GX30-5E800N40-RF8WSM23S Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 0.0400 lb ISO Code GX30-5E800N40-RF8 WSM23S Length 30 mm Material Grade M, P, S Series Tiger?tec® Silver Type Double Edged Full Radius Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker RF8 Corner Radius 4 mm Cutting Direction Neutral Cutting Width 8.0000 mm Insert Style GX30 Manufacturer's Grade WSM23S Material Carbide Maximum Depth of Cut 4.5 mm Rake Positive Circumference fully ground|High surface quality|Stable cutting edge High surface quality Stable cutting edge 26 mm maximum depth of cut +/-0.02 mm cutting width tolerance +/-0.02 mm cutting length tolerance 2 cutting edges 0.18 to 0.6 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX30-5E800N40-RF8 WSM23S |
| Catalog Number | GX30-5E800N40-RF8WSM23S |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 0.0400 lb |
| ISO Code | GX30-5E800N40-RF8 WSM23S |
| Length | 30 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Double Edged Full Radius |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | RF8 |
| Corner Radius | 4 mm |
| Cutting Direction | Neutral |
| Cutting Width | 8.0000 mm |
| Insert Style | GX30 |
| Manufacturer's Grade | WSM23S |
| Material | Carbide |
| Maximum Depth of Cut | 4.5 mm |
| Rake | Positive |
| Circumference fully ground|High surface quality|Stable cutting edge |
| High surface quality |
| Stable cutting edge |
| 26 mm maximum depth of cut |
| +/-0.02 mm cutting width tolerance |
| +/-0.02 mm cutting length tolerance |
| 2 cutting edges |
| 0.18 to 0.6 mm feed/rev |
