Valenite 6641652 Cut-Off Double Sided Grooving Insert, GX24-1E200N02-CF6 WSM43S ANSI, E, GX Insert, 2 mm W Cutting

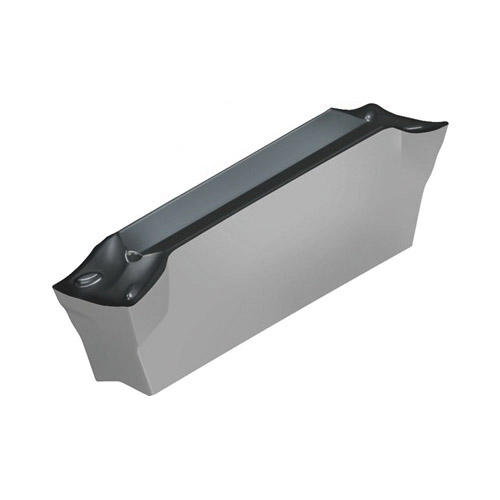

Custom_Product_Images_Illustration
Valenite 6641652 Cut-Off Double Sided Grooving Insert, GX24-1E200N02-CF6 WSM43S ANSI, E, GX Insert, 2 mm W Cutting
SKUPDW~12066140
MFGR #GX24-1E200N02-CF6WSM43S
$/ea
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 2 mm Cutting Width, 10 deg Lead Angle, CF6 Chipbreaker, 0.2 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM43S, ANSI Code: GX24-1E200N02-CF6 WSM43S, ISO Code: GX24-1E200N02-CF6 WSM43S, Neutral Hand, Carbide, PVD Coated, Material Grade: M/N/O/P/S
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 2 mm Cutting Width, 10 deg Lead Angle, CF6 Chipbreaker, 0.2 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM43S, ANSI Code: GX24-1E200N02-CF6 WSM43S, ISO Code: GX24-1E200N02-CF6 WSM43S, Neutral Hand, Carbide, PVD Coated, Material Grade: M/N/O/P/S
ANSI Code GX24-1E200N02-CF6 WSM43S Catalog Number GX24-1E200N02-CF6WSM43S Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 0.0100 lb ISO Code GX24-1E200N02-CF6 WSM43S Length 24 mm Material Grade M, P, S Series Tiger?tec® Silver Type Double Edged Cut-Off Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker CF6 Corner Radius 0.2 mm Cutting Direction Neutral Cutting Width 2.0000 mm Insert Style GX24 Manufacturer's Grade WSM43S Material Carbide Maximum Depth of Cut 23.7 mm Rake Positive Low feeds|Low burr/center pip formation|Low cutting force Low feed rate Low burr/center pip formation Low cutting force +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.03 to 0.12 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-1E200N02-CF6 WSM43S |
| Catalog Number | GX24-1E200N02-CF6WSM43S |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 0.0100 lb |
| ISO Code | GX24-1E200N02-CF6 WSM43S |
| Length | 24 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Double Edged Cut-Off |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | CF6 |
| Corner Radius | 0.2 mm |
| Cutting Direction | Neutral |
| Cutting Width | 2.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WSM43S |
| Material | Carbide |
| Maximum Depth of Cut | 23.7 mm |
| Rake | Positive |
| Low feeds|Low burr/center pip formation|Low cutting force |
| Low feed rate |
| Low burr/center pip formation |
| Low cutting force |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.03 to 0.12 mm feed/rev |
