Walter (Valentine)

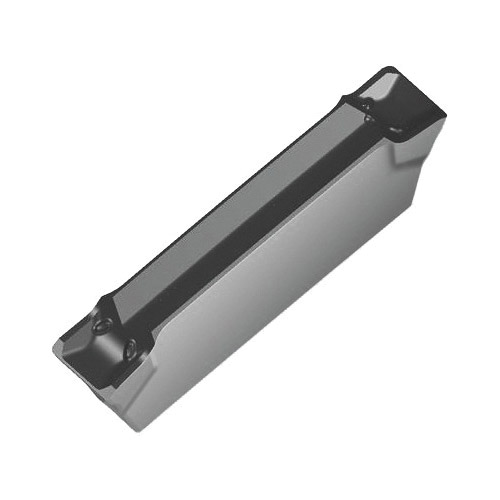

Valenite 6641648 Cut-Off Double Sided Grooving Insert, GX24-1E200N02-CE4 WKP23S ANSI, E, GX Insert, 2 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6641648 Cut-Off Double Sided Grooving Insert, GX24-1E200N02-CE4 WKP23S ANSI, E, GX Insert, 2 mm W Cutting
SKU1106696
MFGR #GX24-1E200N02-CE4WKP23S
$/ea
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 2 mm Cutting Width, 10 deg Lead Angle, CE4 Chipbreaker, 0.2 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX24-1E200N02-CE4 WKP23S, ISO Code: GX24-1E200N02-CE4 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/M/N/P/S
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 2 mm Cutting Width, 10 deg Lead Angle, CE4 Chipbreaker, 0.2 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX24-1E200N02-CE4 WKP23S, ISO Code: GX24-1E200N02-CE4 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/M/N/P/S
ANSI Code GX24-1E200N02-CE4 WKP23S Catalog Number GX24-1E200N02-CE4WKP23S Country of Origin DE Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 1 lb ISO Code GX24-1E200N02-CE4 WKP23S Length 24 mm Material Grade K, P Series Tiger?tec® Silver Type Double Edged Cut-Off Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker CE4 Corner Radius 0.2 mm Cutting Direction Neutral Cutting Width 2.0000 mm Insert Style GX24 Manufacturer's Grade WKP23S Material Carbide Maximum Depth of Cut 23.7 mm Rake Positive Moderate to high feeds|Good chip constriction|Stable cutting edge Moderate to high feed rates Excellent chip constriction Stable cutting edge +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.06 to 0.15 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-1E200N02-CE4 WKP23S |
| Catalog Number | GX24-1E200N02-CE4WKP23S |
| Country of Origin | DE |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 1 lb |
| ISO Code | GX24-1E200N02-CE4 WKP23S |
| Length | 24 mm |
| Material Grade | K, P |
| Series | Tiger?tec® Silver |
| Type | Double Edged Cut-Off |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | CE4 |
| Corner Radius | 0.2 mm |
| Cutting Direction | Neutral |
| Cutting Width | 2.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WKP23S |
| Material | Carbide |
| Maximum Depth of Cut | 23.7 mm |
| Rake | Positive |
| Moderate to high feeds|Good chip constriction|Stable cutting edge |
| Moderate to high feed rates |
| Excellent chip constriction |
| Stable cutting edge |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.06 to 0.15 mm feed/rev |
