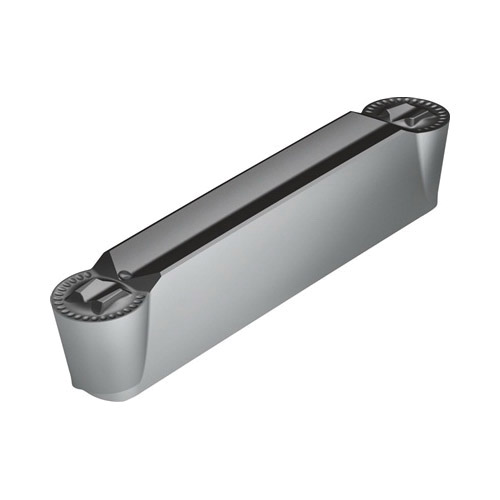

Valenite 6570770 Double Sided Full Radius Grooving Insert, GX16-2E300N15-RD4 WSM23S ANSI, E, GX Insert, 3 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6570770 Double Sided Full Radius Grooving Insert, GX16-2E300N15-RD4 WSM23S ANSI, E, GX Insert, 3 mm W Cutting
SKUPDW~12066111
MFGR #GX16-2E300N15-RD4WSM23S
$/ea
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 21 deg Lead Angle, RD4 Chipbreaker, 1.5 mm Corner Radius, 16 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX16-2E300N15-RD4 WSM23S, ISO Code: GX16-2E300N15-RD4 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 21 deg Lead Angle, RD4 Chipbreaker, 1.5 mm Corner Radius, 16 mm Length, Manufacturer's Grade: WSM23S, ANSI Code: GX16-2E300N15-RD4 WSM23S, ISO Code: GX16-2E300N15-RD4 WSM23S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
ANSI Code GX16-2E300N15-RD4 WSM23S Catalog Number GX16-2E300N15-RD4WSM23S Country of Origin DE Finish PVD-TiAlN+Al2O3 (Al) Coated Gross Weight Per Pack 1 lb ISO Code GX16-2E300N15-RD4 WSM23S Length 16 mm Material Grade M, P, S Series Tiger?tec® Silver Type Double Edged Full Radius Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker RD4 Corner Radius 1.5 mm Cutting Direction Neutral Cutting Width 3.0000 mm Insert Style GX16 Manufacturer's Grade WSM23S Material Carbide Maximum Depth of Cut 1.5 mm Rake Positive Outstanding chip control during grooving|For moderate to high feeds|Circumference sintered Outstanding chip control during grooving For moderate to high feeds 12 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.1 to 0.35 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX16-2E300N15-RD4 WSM23S |
| Catalog Number | GX16-2E300N15-RD4WSM23S |
| Country of Origin | DE |
| Finish | PVD-TiAlN+Al2O3 (Al) Coated |
| Gross Weight Per Pack | 1 lb |
| ISO Code | GX16-2E300N15-RD4 WSM23S |
| Length | 16 mm |
| Material Grade | M, P, S |
| Series | Tiger?tec® Silver |
| Type | Double Edged Full Radius |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | RD4 |
| Corner Radius | 1.5 mm |
| Cutting Direction | Neutral |
| Cutting Width | 3.0000 mm |
| Insert Style | GX16 |
| Manufacturer's Grade | WSM23S |
| Material | Carbide |
| Maximum Depth of Cut | 1.5 mm |
| Rake | Positive |
| Outstanding chip control during grooving|For moderate to high feeds|Circumference sintered |
| Outstanding chip control during grooving |
| For moderate to high feeds |
| 12 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.1 to 0.35 mm feed/rev |
