Walter (Valentine)

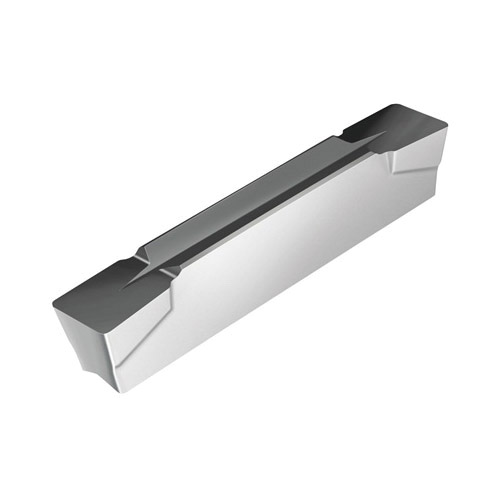

Valenite 6529746 Double Sided Universal Grooving Insert, GX24-4E600N05-UA4 WKP13S ANSI, E, GX Insert, 6 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6529746 Double Sided Universal Grooving Insert, GX24-4E600N05-UA4 WKP13S ANSI, E, GX Insert, 6 mm W Cutting
SKUPDW~12066204
MFGR #GX24-4E600N05-UA4WKP13S
$/ea
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 6 mm Cutting Width, 3.5 mm Maximum Depth of Cut, 10 deg Lead Angle, UA4 Chipbreaker, 0.5 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WKP13S, ANSI Code: GX24-4E600N05-UA4 WKP13S, ISO Code: GX24-4E600N05-UA4 WKP13S, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/P
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 6 mm Cutting Width, 3.5 mm Maximum Depth of Cut, 10 deg Lead Angle, UA4 Chipbreaker, 0.5 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WKP13S, ANSI Code: GX24-4E600N05-UA4 WKP13S, ISO Code: GX24-4E600N05-UA4 WKP13S, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/P
ANSI Code GX24-4E600N05-UA4 WKP13S Catalog Number GX24-4E600N05-UA4WKP13S Country of Origin DE Cutting Height 4.09 mm Finish CVD-TiCN+Al2O3+TiN Coated Gross Weight Per Pack 0.0200 lb ISO Code GX24-4E600N05-UA4 WKP13S Length 24 mm Material Grade H, K, P Series Tiger?tec® Silver Type Double Edged Universal Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker UA4 Corner Radius 0.5 mm Cutting Direction Neutral Cutting Width 6.0000 mm Insert Style GX24 Manufacturer's Grade WKP13S Material Carbide Maximum Depth of Cut 3.5 mm Rake Positive Middle to high machining parameters|Maximum process reliability in cast iron machining Middle to high machining parameters Greatest process reliability in cast iron machining 21 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.14 to 0.4 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-4E600N05-UA4 WKP13S |
| Catalog Number | GX24-4E600N05-UA4WKP13S |
| Country of Origin | DE |
| Cutting Height | 4.09 mm |
| Finish | CVD-TiCN+Al2O3+TiN Coated |
| Gross Weight Per Pack | 0.0200 lb |
| ISO Code | GX24-4E600N05-UA4 WKP13S |
| Length | 24 mm |
| Material Grade | H, K, P |
| Series | Tiger?tec® Silver |
| Type | Double Edged Universal |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | UA4 |
| Corner Radius | 0.5 mm |
| Cutting Direction | Neutral |
| Cutting Width | 6.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WKP13S |
| Material | Carbide |
| Maximum Depth of Cut | 3.5 mm |
| Rake | Positive |
| Middle to high machining parameters|Maximum process reliability in cast iron machining |
| Middle to high machining parameters |
| Greatest process reliability in cast iron machining |
| 21 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.14 to 0.4 mm feed/rev |
