Walter (Valentine)

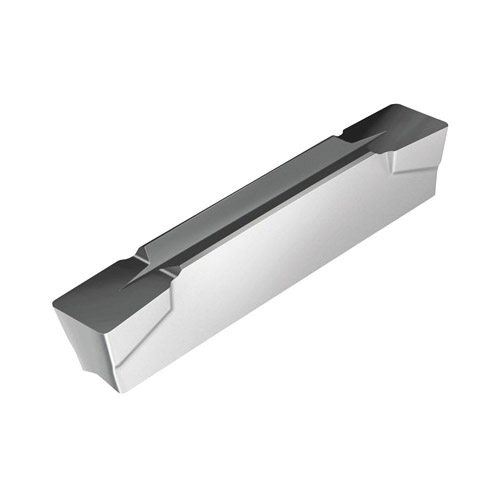

Valenite 6529733 Double Sided Universal Grooving Insert, GX16-3E400N04-UA4 WKP33S ANSI, E, GX Insert, 4 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6529733 Double Sided Universal Grooving Insert, GX16-3E400N04-UA4 WKP33S ANSI, E, GX Insert, 4 mm W Cutting
SKUPDW~12066117
MFGR #GX16-3E400N04-UA4WKP33S
$/ea
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 4 mm Cutting Width, 2.8 mm Maximum Depth of Cut, 21 deg Lead Angle, UA4 Chipbreaker, 0.4 mm Corner Radius, 16 mm Length, Manufacturer's Grade: WKP33S, ANSI Code: GX16-3E400N04-UA4 WKP33S, ISO Code: GX16-3E400N04-UA4 WKP33S, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/P
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 4 mm Cutting Width, 2.8 mm Maximum Depth of Cut, 21 deg Lead Angle, UA4 Chipbreaker, 0.4 mm Corner Radius, 16 mm Length, Manufacturer's Grade: WKP33S, ANSI Code: GX16-3E400N04-UA4 WKP33S, ISO Code: GX16-3E400N04-UA4 WKP33S, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/P
ANSI Code GX16-3E400N04-UA4 WKP33S Catalog Number GX16-3E400N04-UA4WKP33S Country of Origin DE Cutting Height 3.78 mm Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 0.0100 lb ISO Code GX16-3E400N04-UA4 WKP33S Length 16 mm Material Grade K, P Series Tiger?tec® Silver Type Double Edged Universal Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker UA4 Corner Radius 0.4 mm Cutting Direction Neutral Cutting Width 4.0000 mm Insert Style GX16 Manufacturer's Grade WKP33S Material Carbide Maximum Depth of Cut 2.8 mm Rake Positive Middle to high machining parameters|Maximum process reliability in cast iron machining Middle to high machining parameters Greatest process reliability in cast iron machining 12 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.1 to 0.35 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX16-3E400N04-UA4 WKP33S |
| Catalog Number | GX16-3E400N04-UA4WKP33S |
| Country of Origin | DE |
| Cutting Height | 3.78 mm |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 0.0100 lb |
| ISO Code | GX16-3E400N04-UA4 WKP33S |
| Length | 16 mm |
| Material Grade | K, P |
| Series | Tiger?tec® Silver |
| Type | Double Edged Universal |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | UA4 |
| Corner Radius | 0.4 mm |
| Cutting Direction | Neutral |
| Cutting Width | 4.0000 mm |
| Insert Style | GX16 |
| Manufacturer's Grade | WKP33S |
| Material | Carbide |
| Maximum Depth of Cut | 2.8 mm |
| Rake | Positive |
| Middle to high machining parameters|Maximum process reliability in cast iron machining |
| Middle to high machining parameters |
| Greatest process reliability in cast iron machining |
| 12 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.1 to 0.35 mm feed/rev |
