Walter (Valentine)

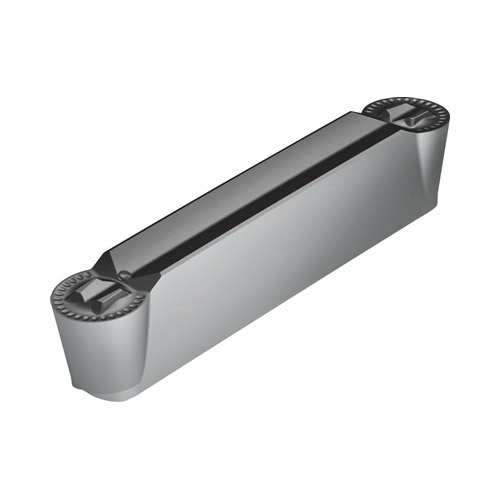

Valenite 6529728 Double Sided Full Radius Grooving Insert, GX24-4E635N32-RD4 WKP23S ANSI, E, GX Insert, WKP23S
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6529728 Double Sided Full Radius Grooving Insert, GX24-4E635N32-RD4 WKP23S ANSI, E, GX Insert, WKP23S
SKUPDW~12066218
MFGR #GX24-4E635N32-RD4WKP23S
Your Cost: $50.54/ea
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 6.35 mm Cutting Width, 3 mm Maximum Depth of Cut, 10 deg Lead Angle, RD4 Chipbreaker, 3.18 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX24-4E635N32-RD4 WKP23S, ISO Code: GX24-4E635N32-RD4 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/P/S
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 6.35 mm Cutting Width, 3 mm Maximum Depth of Cut, 10 deg Lead Angle, RD4 Chipbreaker, 3.18 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX24-4E635N32-RD4 WKP23S, ISO Code: GX24-4E635N32-RD4 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/P/S
ANSI Code GX24-4E635N32-RD4 WKP23S Catalog Number GX24-4E635N32-RD4WKP23S Country of Origin DE Cutting Height 4.09 mm Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 0.0200 lb ISO Code GX24-4E635N32-RD4 WKP23S Length 24 mm Material Grade K, P Series Tiger?tec® Silver Type Double Edged Full Radius Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker RD4 Corner Radius 3.18 mm Cutting Direction Neutral Cutting Width 6.0000 mm Insert Style GX24 Manufacturer's Grade WKP23S Material Carbide Maximum Depth of Cut 3 mm Rake Positive Outstanding chip control during grooving|For moderate to high feeds|Circumference sintered Outstanding chip control during grooving For moderate to high feeds 21 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.17 to 0.7 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-4E635N32-RD4 WKP23S |
| Catalog Number | GX24-4E635N32-RD4WKP23S |
| Country of Origin | DE |
| Cutting Height | 4.09 mm |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 0.0200 lb |
| ISO Code | GX24-4E635N32-RD4 WKP23S |
| Length | 24 mm |
| Material Grade | K, P |
| Series | Tiger?tec® Silver |
| Type | Double Edged Full Radius |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | RD4 |
| Corner Radius | 3.18 mm |
| Cutting Direction | Neutral |
| Cutting Width | 6.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WKP23S |
| Material | Carbide |
| Maximum Depth of Cut | 3 mm |
| Rake | Positive |
| Outstanding chip control during grooving|For moderate to high feeds|Circumference sintered |
| Outstanding chip control during grooving |
| For moderate to high feeds |
| 21 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.17 to 0.7 mm feed/rev |
