Walter (Valentine)

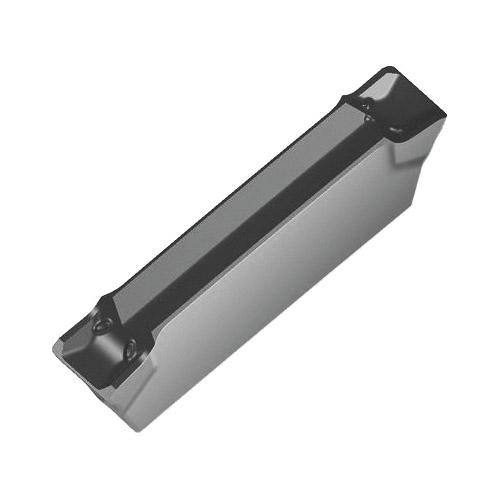

Valenite 6529718 Cut-Off Double Sided Grooving Insert, GX24-3E400N03-CE4 WKP23S ANSI, E, GX Insert, 4 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6529718 Cut-Off Double Sided Grooving Insert, GX24-3E400N03-CE4 WKP23S ANSI, E, GX Insert, 4 mm W Cutting
SKUPDW~12066168
MFGR #GX24-3E400N03-CE4WKP23S
Your Cost: $50.81/ea
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 4 mm Cutting Width, 10 deg Lead Angle, CE4 Chipbreaker, 0.3 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX24-3E400N03-CE4 WKP23S, ISO Code: GX24-3E400N03-CE4 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/M/N/P/S
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 4 mm Cutting Width, 10 deg Lead Angle, CE4 Chipbreaker, 0.3 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX24-3E400N03-CE4 WKP23S, ISO Code: GX24-3E400N03-CE4 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: H/K/M/N/P/S
ANSI Code GX24-3E400N03-CE4 WKP23S Catalog Number GX24-3E400N03-CE4WKP23S Country of Origin DE Cutting Height 4.09 mm Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 0.0100 lb ISO Code GX24-3E400N03-CE4 WKP23S Length 24 mm Material Grade K, P Series Tiger?tec® Silver Type Cut-Off Double Edged Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker CE4 Corner Radius 0.3 mm Cutting Direction Neutral Cutting Width 4.0000 mm Insert Style GX24 Manufacturer's Grade WKP23S Material Carbide Rake Positive Moderate to high feeds|Good chip constriction|Stable cutting edge Moderate to high feed rates Excellent chip constriction Stable cutting edge 21 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.1 to 0.32 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-3E400N03-CE4 WKP23S |
| Catalog Number | GX24-3E400N03-CE4WKP23S |
| Country of Origin | DE |
| Cutting Height | 4.09 mm |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 0.0100 lb |
| ISO Code | GX24-3E400N03-CE4 WKP23S |
| Length | 24 mm |
| Material Grade | K, P |
| Series | Tiger?tec® Silver |
| Type | Cut-Off Double Edged |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | CE4 |
| Corner Radius | 0.3 mm |
| Cutting Direction | Neutral |
| Cutting Width | 4.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WKP23S |
| Material | Carbide |
| Rake | Positive |
| Moderate to high feeds|Good chip constriction|Stable cutting edge |
| Moderate to high feed rates |
| Excellent chip constriction |
| Stable cutting edge |
| 21 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.1 to 0.32 mm feed/rev |
