Walter (Valentine)

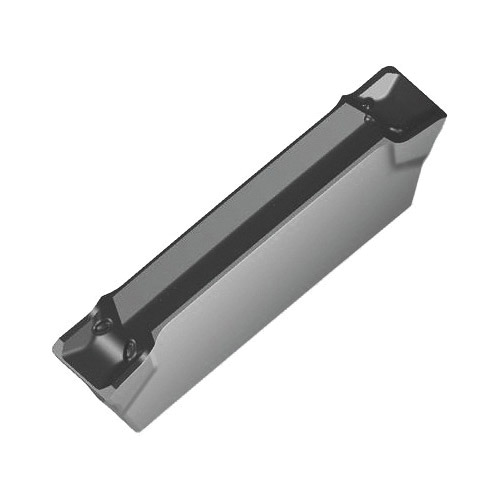

Valenite 6529717 Cut-Off Double Sided Grooving Insert, GX24-2E300R6-CE4 WKP23S ANSI, E, GX Insert, 3 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6529717 Cut-Off Double Sided Grooving Insert, GX24-2E300R6-CE4 WKP23S ANSI, E, GX Insert, 3 mm W Cutting
SKUPDW~12066162
MFGR #GX24-2E300R6-CE4WKP23S
Your Cost: $46.24/ea
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 3 mm Cutting Width, 10 deg Lead Angle, CE4 Chipbreaker, 0.2 mm Corner Radius, 24.6 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX24-2E300R6-CE4 WKP23S, ISO Code: GX24-2E300R6-CE4 WKP23S, Right Hand, Carbide, CVD Coated, Material Grade: H/K/M/N/P/S
VALENITE Grooving Insert, Cut-Off Double Sided, GX Insert, E, 3 mm Cutting Width, 10 deg Lead Angle, CE4 Chipbreaker, 0.2 mm Corner Radius, 24.6 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX24-2E300R6-CE4 WKP23S, ISO Code: GX24-2E300R6-CE4 WKP23S, Right Hand, Carbide, CVD Coated, Material Grade: H/K/M/N/P/S
ANSI Code GX24-2E300R6-CE4 WKP23S Catalog Number GX24-2E300R6-CE4WKP23S Country of Origin DE Cutting Height 4.09 mm Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 0.0100 lb ISO Code GX24-2E300R6-CE4 WKP23S Length 24.6 mm Material Grade K, P Series Tiger?tec® Silver Type Cut-Off Double Edged Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker CE4 Corner Radius 0.2 mm Cutting Direction Right Hand Cutting Width 3.0000 mm Insert Style GX24 Lead Angle 6 ° Manufacturer's Grade WKP23S Material Carbide Rake Positive Moderate to high feeds|Good chip constriction|Stable cutting edge Moderate to high feed rates Excellent chip constriction Stable cutting edge 6 deg right hand cutting edge 21 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.09 to 0.24 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-2E300R6-CE4 WKP23S |
| Catalog Number | GX24-2E300R6-CE4WKP23S |
| Country of Origin | DE |
| Cutting Height | 4.09 mm |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 0.0100 lb |
| ISO Code | GX24-2E300R6-CE4 WKP23S |
| Length | 24.6 mm |
| Material Grade | K, P |
| Series | Tiger?tec® Silver |
| Type | Cut-Off Double Edged |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | CE4 |
| Corner Radius | 0.2 mm |
| Cutting Direction | Right Hand |
| Cutting Width | 3.0000 mm |
| Insert Style | GX24 |
| Lead Angle | 6 ° |
| Manufacturer's Grade | WKP23S |
| Material | Carbide |
| Rake | Positive |
| Moderate to high feeds|Good chip constriction|Stable cutting edge |
| Moderate to high feed rates |
| Excellent chip constriction |
| Stable cutting edge |
| 6 deg right hand cutting edge |
| 21 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.09 to 0.24 mm feed/rev |
