Walter (Valentine)

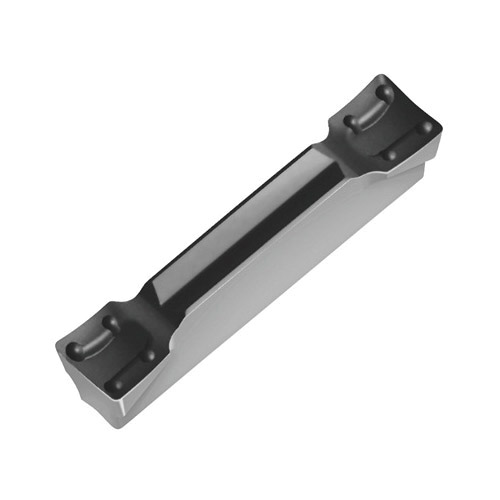

Valenite 6529686 Double Sided Grooving Insert, GX16-1E200N02-GD3 WKP23S ANSI, E, GX Insert, 2 mm W Cutting, WKP23S
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6529686 Double Sided Grooving Insert, GX16-1E200N02-GD3 WKP23S ANSI, E, GX Insert, 2 mm W Cutting, WKP23S
SKUPDW~12066090
MFGR #GX16-1E200N02-GD3WKP23S
$/ea
VALENITE Grooving Insert, Double Sided, GX Insert, E, 2 mm Cutting Width, 21 deg Lead Angle, GD3 Chipbreaker, 0.2 mm Corner Radius, 16 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX16-1E200N02-GD3 WKP23S, ISO Code: GX16-1E200N02-GD3 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/N/O/P/S
VALENITE Grooving Insert, Double Sided, GX Insert, E, 2 mm Cutting Width, 21 deg Lead Angle, GD3 Chipbreaker, 0.2 mm Corner Radius, 16 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX16-1E200N02-GD3 WKP23S, ISO Code: GX16-1E200N02-GD3 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/N/O/P/S
ANSI Code GX16-1E200N02-GD3 WKP23S Catalog Number GX16-1E200N02-GD3WKP23S Country of Origin DE Cutting Height 3.78 mm Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 1 lb ISO Code GX16-1E200N02-GD3 WKP23S Length 16 mm Material Grade K, P Series Tiger?tec® Silver Type Double Edged Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker GD3 Corner Radius 0.2 mm Cutting Direction Neutral Cutting Width 2.0000 mm Insert Style GX16 Manufacturer's Grade WKP23S Material Carbide Rake Positive Extremely soft cutting action|Light to moderate feeds Very soft cutting action Light to moderate feed rates +/-0.02 mm cutting width tolerance +/-0.02 mm cutting length tolerance 2 cutting edges 0.04 to 0.12 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX16-1E200N02-GD3 WKP23S |
| Catalog Number | GX16-1E200N02-GD3WKP23S |
| Country of Origin | DE |
| Cutting Height | 3.78 mm |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 1 lb |
| ISO Code | GX16-1E200N02-GD3 WKP23S |
| Length | 16 mm |
| Material Grade | K, P |
| Series | Tiger?tec® Silver |
| Type | Double Edged |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | GD3 |
| Corner Radius | 0.2 mm |
| Cutting Direction | Neutral |
| Cutting Width | 2.0000 mm |
| Insert Style | GX16 |
| Manufacturer's Grade | WKP23S |
| Material | Carbide |
| Rake | Positive |
| Extremely soft cutting action|Light to moderate feeds |
| Very soft cutting action |
| Light to moderate feed rates |
| +/-0.02 mm cutting width tolerance |
| +/-0.02 mm cutting length tolerance |
| 2 cutting edges |
| 0.04 to 0.12 mm feed/rev |
