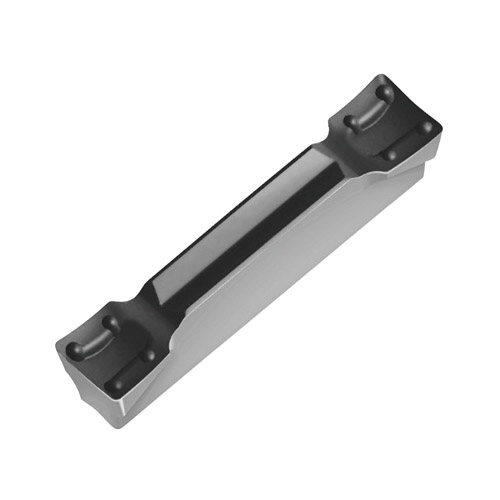

Valenite 6529683 Double Sided Grooving Insert, GX09-1E250N02-GD3 WKP23S ANSI, E, GX Insert, 2.5 mm W Cutting, WKP23S
GX Grooving Inserts
PDW~12066083
MFG #: GX09-1E250N02-GD3WKP23S
Walter (Valentine)
25.20000
/ ea
VALENITE Grooving Insert, Double Sided, GX Insert, E, 2.5 mm Cutting Width, 26 deg Lead Angle, GD3 Chipbreaker, 0.2 mm Corner Radius, 9 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX09-1E250N02-GD3 WKP23S, ISO Code: GX09-1E250N02-GD3 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/N/O/P/S
- Features
| Extremely soft cutting action|Light to moderate feeds |
| Very soft cutting action |
| Light to moderate feed rates |
| 7 mm maximum depth of cut |
| +/-0.02 mm cutting width tolerance |
| +/-0.02 mm cutting length tolerance |
| 2 cutting edges |
| 0.14 to 0.4 mm feed/rev |
