Walter (Valentine)

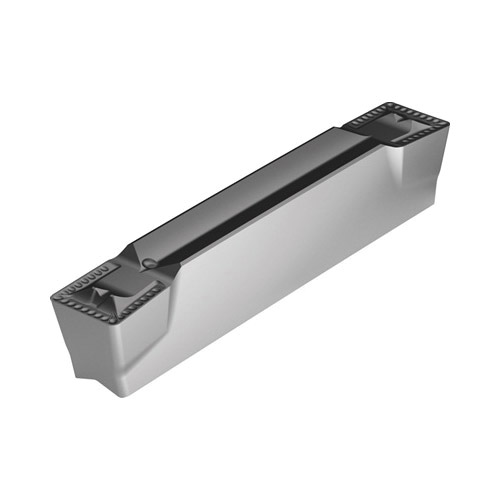

Valenite 6529458 Double Sided Universal Grooving Insert, GX30-5E800N08-UD4 WKP23S ANSI, E, GX Insert, 8 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6529458 Double Sided Universal Grooving Insert, GX30-5E800N08-UD4 WKP23S ANSI, E, GX Insert, 8 mm W Cutting
SKUPDW~12066220
MFGR #GX30-5E800N08-UD4WKP23S
Your Cost: $73.25/ea
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 8 mm Cutting Width, 3.5 mm Maximum Depth of Cut, 10 deg Lead Angle, UD4 Chipbreaker, 0.8 mm Corner Radius, 30 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX30-5E800N08-UD4 WKP23S, ISO Code: GX30-5E800N08-UD4 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/P
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 8 mm Cutting Width, 3.5 mm Maximum Depth of Cut, 10 deg Lead Angle, UD4 Chipbreaker, 0.8 mm Corner Radius, 30 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX30-5E800N08-UD4 WKP23S, ISO Code: GX30-5E800N08-UD4 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/P
ANSI Code GX30-5E800N08-UD4 WKP23S Catalog Number GX30-5E800N08-UD4WKP23S Country of Origin DE Cutting Height 5.18 mm Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 0.0300 lb ISO Code GX30-5E800N08-UD4 WKP23S Length 30 mm Material Grade K, P Series Tiger?tec® Silver Type Double Edged Universal Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker UD4 Corner Radius 0.8 mm Cutting Direction Neutral Cutting Width 8.0000 mm Insert Style GX30 Manufacturer's Grade WKP23S Material Carbide Maximum Depth of Cut 4 mm Rake Positive Large chip breaking area|Optimum chip breaking when machining forged parts|Stable cutting edge|For moderate to high feeds Optimum chip breaking when machining forged parts Stable cutting edge For moderate to high feeds 26 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.14 to 0.4 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX30-5E800N08-UD4 WKP23S |
| Catalog Number | GX30-5E800N08-UD4WKP23S |
| Country of Origin | DE |
| Cutting Height | 5.18 mm |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 0.0300 lb |
| ISO Code | GX30-5E800N08-UD4 WKP23S |
| Length | 30 mm |
| Material Grade | K, P |
| Series | Tiger?tec® Silver |
| Type | Double Edged Universal |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | UD4 |
| Corner Radius | 0.8 mm |
| Cutting Direction | Neutral |
| Cutting Width | 8.0000 mm |
| Insert Style | GX30 |
| Manufacturer's Grade | WKP23S |
| Material | Carbide |
| Maximum Depth of Cut | 4 mm |
| Rake | Positive |
| Large chip breaking area|Optimum chip breaking when machining forged parts|Stable cutting edge|For moderate to high feeds |
| Optimum chip breaking when machining forged parts |
| Stable cutting edge |
| For moderate to high feeds |
| 26 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.14 to 0.4 mm feed/rev |
