Walter (Valentine)

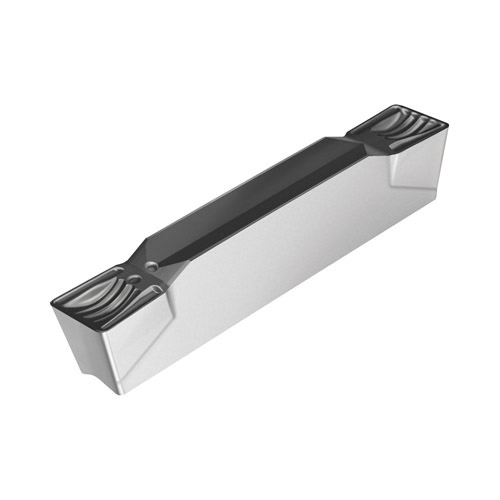

Valenite 6529441 Double Sided Universal Grooving Insert, GX24-2E300N03-UF4 WKP23S ANSI, E, GX Insert, 3 mm W Cutting
Custom_Product_Images_Illustration
Walter (Valentine)
Valenite 6529441 Double Sided Universal Grooving Insert, GX24-2E300N03-UF4 WKP23S ANSI, E, GX Insert, 3 mm W Cutting
SKU1132251
MFGR #GX24-2E300N03-UF4WKP23S
Your Cost: $29.02/ea
List: VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 3 mm Cutting Width, 2 mm Maximum Depth of Cut, 10 deg Lead Angle, UF4 Chipbreaker, 0.3 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX24-2E300N03-UF4 WKP23S, ISO Code: GX24-2E300N03-UF4 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/P/S
VALENITE Grooving Insert, Double Sided Universal, GX Insert, E, 3 mm Cutting Width, 2 mm Maximum Depth of Cut, 10 deg Lead Angle, UF4 Chipbreaker, 0.3 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WKP23S, ANSI Code: GX24-2E300N03-UF4 WKP23S, ISO Code: GX24-2E300N03-UF4 WKP23S, Neutral Hand, Carbide, CVD Coated, Material Grade: K/M/P/S
ANSI Code GX24-2E300N03-UF4 WKP23S Catalog Number GX24-2E300N03-UF4WKP23S Country of Origin DE Cutting Height 4.09 mm Finish CVD-TiCN+Al2O3+TiCN Coated Gross Weight Per Pack 0.0100 lb ISO Code GX24-2E300N03-UF4 WKP23S Length 24 mm Material Grade K, P Series Tiger?tec® Silver Type Double Edged Universal Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker UF4 Corner Radius 0.3 mm Cutting Direction Neutral Cutting Width 3.0000 mm Insert Style GX24 Manufacturer's Grade WKP23S Material Carbide Maximum Depth of Cut 2 mm Rake Positive All grooving operations|Good chip control|Average feed range|Positive cut Good chip control Medium feed rates Low cutting force 21 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.1 to 0.2 mm feed/rev
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | GX24-2E300N03-UF4 WKP23S |
| Catalog Number | GX24-2E300N03-UF4WKP23S |
| Country of Origin | DE |
| Cutting Height | 4.09 mm |
| Finish | CVD-TiCN+Al2O3+TiCN Coated |
| Gross Weight Per Pack | 0.0100 lb |
| ISO Code | GX24-2E300N03-UF4 WKP23S |
| Length | 24 mm |
| Material Grade | K, P |
| Series | Tiger?tec® Silver |
| Type | Double Edged Universal |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | UF4 |
| Corner Radius | 0.3 mm |
| Cutting Direction | Neutral |
| Cutting Width | 3.0000 mm |
| Insert Style | GX24 |
| Manufacturer's Grade | WKP23S |
| Material | Carbide |
| Maximum Depth of Cut | 2 mm |
| Rake | Positive |
| All grooving operations|Good chip control|Average feed range|Positive cut |
| Good chip control |
| Medium feed rates |
| Low cutting force |
| 21 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.1 to 0.2 mm feed/rev |
