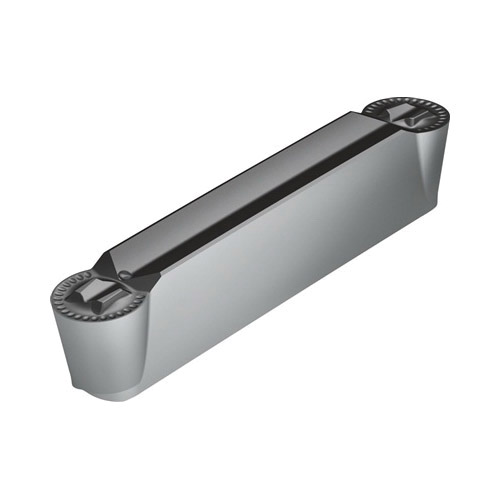

Valenite 6153444 Double Sided Full Radius Grooving Insert, GX24-2E300N15-RD4 WSM33S ANSI, E, GX Insert, 3 mm W Cutting
Custom_Product_Images_Illustration
Valenite 6153444 Double Sided Full Radius Grooving Insert, GX24-2E300N15-RD4 WSM33S ANSI, E, GX Insert, 3 mm W Cutting
SKU1135273
MFGR #GX24-2E300N15-RD4WSM33S
Your Cost: $29.02/ea
List: VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 10 deg Lead Angle, RD4 Chipbreaker, 1.5 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM33S, ANSI Code: GX24-2E300N15-RD4 WSM33S, ISO Code: GX24-2E300N15-RD4 WSM33S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
VALENITE Grooving Insert, Double Sided Full Radius, GX Insert, E, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 10 deg Lead Angle, RD4 Chipbreaker, 1.5 mm Corner Radius, 24 mm Length, Manufacturer's Grade: WSM33S, ANSI Code: GX24-2E300N15-RD4 WSM33S, ISO Code: GX24-2E300N15-RD4 WSM33S, Neutral Hand, Carbide, PVD Coated, Material Grade: K/M/P/S
ANSI Code GX24-2E300N15-RD4 WSM33S Catalog Number GX24-2E300N15-RD4WSM33S Country of Origin DE Finish PVD Coated Gross Weight Per Pack 0.0100 lb Hand of Insert Neutral ISO Code GX24-2E300N15-RD4 WSM33S Length 24 mm Material Grade K/M/P/S Shape E Type Double Sided Full Radius Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker RD4 Corner Radius 1.5 mm Insert Style Tiger?tec® Silver Lead Angle 10 deg Manufacturer's Grade WSM33S Material Carbide Maximum Depth of Cut 1.5 mm RD4 Geometry - Circumference sintered Outstanding chip control during grooving For moderate to high feeds 21 mm maximum depth of cut +/-0.05 mm cutting width tolerance +/-0.15 mm cutting length tolerance 2 cutting edges 0.1 to 0.35 mm feed/rev
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| ANSI Code | GX24-2E300N15-RD4 WSM33S |
| Catalog Number | GX24-2E300N15-RD4WSM33S |
| Country of Origin | DE |
| Finish | PVD Coated |
| Gross Weight Per Pack | 0.0100 lb |
| Hand of Insert | Neutral |
| ISO Code | GX24-2E300N15-RD4 WSM33S |
| Length | 24 mm |
| Material Grade | K/M/P/S |
| Shape | E |
| Type | Double Sided Full Radius |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | RD4 |
| Corner Radius | 1.5 mm |
| Insert Style | Tiger?tec® Silver |
| Lead Angle | 10 deg |
| Manufacturer's Grade | WSM33S |
| Material | Carbide |
| Maximum Depth of Cut | 1.5 mm |
| RD4 Geometry - Circumference sintered |
| Outstanding chip control during grooving |
| For moderate to high feeds |
| 21 mm maximum depth of cut |
| +/-0.05 mm cutting width tolerance |
| +/-0.15 mm cutting length tolerance |
| 2 cutting edges |
| 0.1 to 0.35 mm feed/rev |
