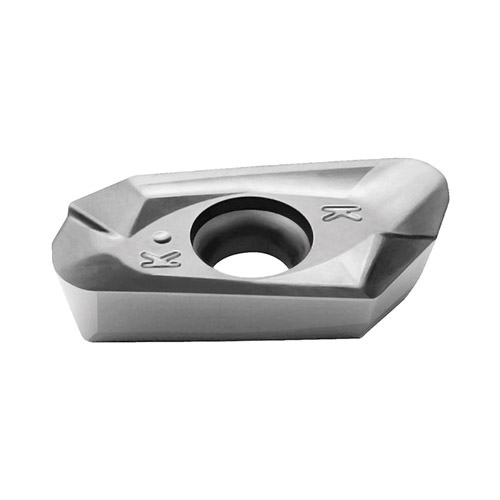

Valenite 5004885 Positive Single Sided Indexable Milling Insert, ZDGT150430R-K85 WK10 ANSI, Rhombic, ZDGT Insert
ZDGT Milling Inserts
PDW~9960891
MFG #: ZDGT150430R-K85WK10
Walter (Valentine)
27.00000
/ ea
VALENITE Indexable Milling Insert, Positive Single Sided, ZDGT Insert, Rhombic, 4.76 mm Thickness, 10.5 mm Width, 16.2 mm Length, K85 Chipbreaker, 3 mm Corner Radius, 25 deg Rake, 15 deg Lead Angle, 4.4 mm Hole Dia, Manufacturer's Grade: WK10, ANSI Code: ZDGT150430R-K85 WK10, ISO Code: ZDGT150430R-K85 WK10, Right Hand, Carbide, Uncoated, Material Grade: N
- Features
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.2 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
