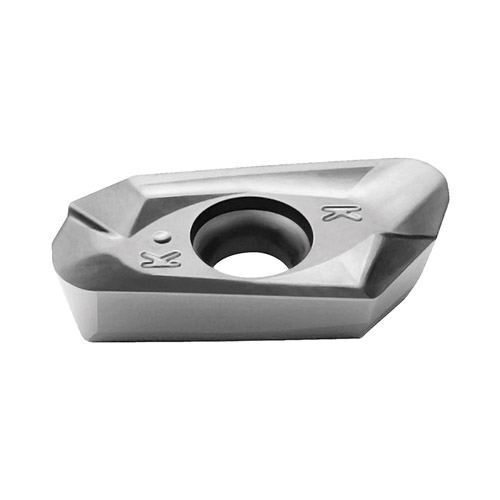

Valenite 5004873 Positive Single Sided Indexable Milling Insert, ZDGT200540R-K85 WK10 ANSI, Rhombic, ZDGT Insert
Custom_Product_Images_Illustration
Valenite 5004873 Positive Single Sided Indexable Milling Insert, ZDGT200540R-K85 WK10 ANSI, Rhombic, ZDGT Insert
SKUPDW~9960908
MFGR #ZDGT200540R-K85WK10
Your Cost: $57.53/ea
VALENITE Indexable Milling Insert, Positive Single Sided, ZDGT Insert, Rhombic, 5.56 mm Thickness, 14 mm Width, 21.2 mm Length, K85 Chipbreaker, 4 mm Corner Radius, 25 deg Rake, 15 deg Lead Angle, 5.6 mm Hole Dia, Manufacturer's Grade: WK10, ANSI Code: ZDGT200540R-K85 WK10, ISO Code: ZDGT200540R-K85 WK10, Right Hand, Carbide, Uncoated, Material Grade: N
VALENITE Indexable Milling Insert, Positive Single Sided, ZDGT Insert, Rhombic, 5.56 mm Thickness, 14 mm Width, 21.2 mm Length, K85 Chipbreaker, 4 mm Corner Radius, 25 deg Rake, 15 deg Lead Angle, 5.6 mm Hole Dia, Manufacturer's Grade: WK10, ANSI Code: ZDGT200540R-K85 WK10, ISO Code: ZDGT200540R-K85 WK10, Right Hand, Carbide, Uncoated, Material Grade: N
ANSI Code ZDGT200540R-K85 WK10 Catalog Number ZDGT200540R-K85WK10 Corner Radius 4 mm Country of Origin DE Finish Uncoated Gross Weight Per Pack 0.0400 lb Hand of Insert Right Hole Diameter 5.6 mm ISO Code ZDGT200540R-K85 WK10 Lead Angle 15 deg Length 21.2 mm Thickness 5.56 mm Type Positive Single Sided Width 14 mm Stock Status NONSTOCK Brand Walter (Valentine) Manufacturer Walter Chipbreaker K85 Insert Style ZDGT Manufacturer's Grade WK10 Material Carbide Material Grade N Rake 25 deg Shape Rhombic +/-0.025 mm cutting edge tolerance +/-0.025 mm inscribed circle tolerance +/-0.13 mm thickness tolerance 1.2 mm width face chamfer 2 cutting edges 40 to 60 deg double countersink hole
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| ANSI Code | ZDGT200540R-K85 WK10 |
| Catalog Number | ZDGT200540R-K85WK10 |
| Corner Radius | 4 mm |
| Country of Origin | DE |
| Finish | Uncoated |
| Gross Weight Per Pack | 0.0400 lb |
| Hand of Insert | Right |
| Hole Diameter | 5.6 mm |
| ISO Code | ZDGT200540R-K85 WK10 |
| Lead Angle | 15 deg |
| Length | 21.2 mm |
| Thickness | 5.56 mm |
| Type | Positive Single Sided |
| Width | 14 mm |
| Stock Status | NONSTOCK |
| Brand | Walter (Valentine) |
| Manufacturer | Walter |
| Chipbreaker | K85 |
| Insert Style | ZDGT |
| Manufacturer's Grade | WK10 |
| Material | Carbide |
| Material Grade | N |
| Rake | 25 deg |
| Shape | Rhombic |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.2 mm width face chamfer |
| 2 cutting edges |
| 40 to 60 deg double countersink hole |
