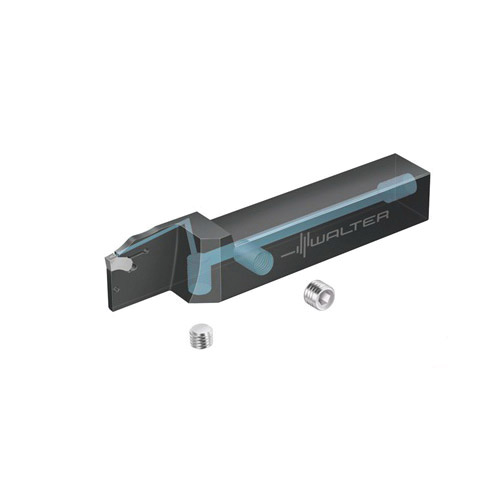

VALENITE Walter Cut G2012 Grooving/Cut-Off Tool Holder With Precision Cooling, Insert Compatibility SX-5E5 . .
Indexable Grooving/Cut-Off Tool Holders
1052894
MFG #: G2012.16R-5T40SX-P
Walter (Valentine)
345.15000
/ ea
VALENITE Walter Cut Grooving/Cut-Off Tool Holder, Series: G2012, Insert Compatibility: SX-5E5 . ., 2.047 in Head Length, 6 in Overall Length, 1 in H x 1 in W Shank, Right Hand Cutting, 0.197 in Minimum Groove Width, 1.575 in Maximum Depth of Cut, Self/Spring Clamp
- Features
| External machining |
| 0 deg radial grooving |
| 1-piece shank tool |
| User friendly self-clamping system for fast replacement of the cutting edge |
| Longer tool life and higher productivity thanks to optimum cooling directly in the cutting zone starting from a coolant pressure as low as 150 psi |
| Short chips, therefore no downtime for removing chip accumulation |
| Can be used on all types of lathes |
| 0.169 in W body |
| 0.915 in W functional |
| 0 deg (straight) approach angle |
| 1 in H cutting |
| ISO Code: G2012.16R-5T40SX-P |
| ANSI Code: G2012.16R-5T40SX-P |
