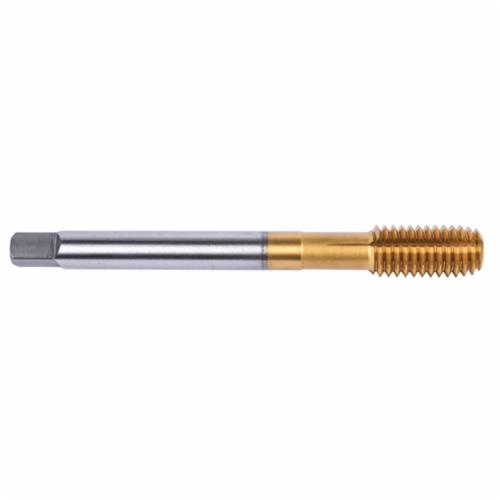

Union Butterfield® 46204946 1681AP 5/16-18 APPLIX MXR PM THREAD FORMER SEMI-BOT LEAD TiN TOP 2B
Dormer Pramet
Union Butterfield® 46204946 1681AP 5/16-18 APPLIX MXR PM THREAD FORMER SEMI-BOT LEAD TiN TOP 2B
SKU707295
MFGR #46204946
Your Cost: $33.02/ea
List: UNB 46204946 1681AP 5/16-18 APPLIX MXR PM THREAD FORMER SEMI-BOT LEAD TiN TOP 2B
UNB 46204946 1681AP 5/16-18 APPLIX MXR PM THREAD FORMER SEMI-BOT LEAD TiN TOP 2B
Catalog Number 46204946 Chamfer Type Semi-Bottoming Class of Fit 2B Cutting Direction Right Hand Finish|Coating TiN Coated Gross Weight Per Pack 0.0800 lb Material HSS-PM Measurement System Imperial Overall Length 3.546 in Series 1681AP Applix MXR Shank Diameter 0.318 in Square Size 0.238 in Standards ANSI/DIN Specified Thread Length 0.787 in Thread Standard UNC Type High Performance UPC 11 69846442371 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Thread Limit H7 Thread Size 5/16-18 Premium PM substrate provides superior abrasion resistance and edge strength Multiple lube groove design assures lubrication in the forming zone and eliminates the build-up of hydraulic pressure in blind holes The TiN top coating process reduces friction, prevents chip welding and improves chip flow
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 46204946 |
| Chamfer Type | Semi-Bottoming |
| Class of Fit | 2B |
| Cutting Direction | Right Hand |
| Finish|Coating | TiN Coated |
| Gross Weight Per Pack | 0.0800 lb |
| Material | HSS-PM |
| Measurement System | Imperial |
| Overall Length | 3.546 in |
| Series | 1681AP Applix MXR |
| Shank Diameter | 0.318 in |
| Square Size | 0.238 in |
| Standards | ANSI/DIN Specified |
| Thread Length | 0.787 in |
| Thread Standard | UNC |
| Type | High Performance |
| UPC 11 | 69846442371 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Thread Limit | H7 |
| Thread Size | 5/16-18 |
| Premium PM substrate provides superior abrasion resistance and edge strength |
| Multiple lube groove design assures lubrication in the forming zone and eliminates the build-up of hydraulic pressure in blind holes |
| The TiN top coating process reduces friction, prevents chip welding and improves chip flow |
