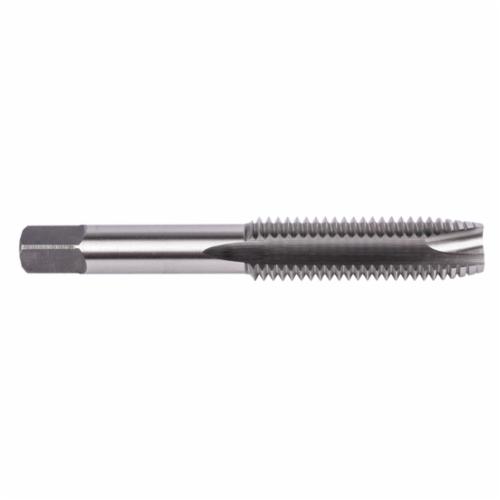

Union Butterfield® 1012668 1785M 4X.70 UB REL PLUG HSS TAP BRT
Dormer Pramet
Union Butterfield® 1012668 1785M 4X.70 UB REL PLUG HSS TAP BRT
SKU400879
MFGR #1012668
Your Cost: $11.07/ea
List: UNB 1012668 1785M 4X.70 REL PLUG HSS TAP BRT
UNB 1012668 1785M 4X.70 REL PLUG HSS TAP BRT
Catalog Number 1012668 Class of Fit 6H Country of Origin US Finish|Coating Bright Gross Weight Per Pack 0.0200 lb Measurement System Metric Overall Length 2-1/8 in Series 1785M Shank Diameter 0.168 in Standards ANSI Specified Thread Length 3/4 in Type Relieved UPC 11 69846403688 Stock Status NONSTOCK Brand Dormer Pramet Manufacturer Dormer Pramet Chamfer Type Plug Cutting Direction Right Hand Material HSS Material Application Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials Number of Flutes 2 Thread Limit D4 Thread Size M4x0.7 Spiral point taps are used to solve the problem of tap breakage in through hole tapping in a wide variety of materials The angular flutes in the cutting face propel the chips ahead of the cutting zone, thus reducing loading and clogging in the flutes The 1785M style features eccentrically relieved threads with full pitch diameter relief These taps are extremely free cutting, resulting in longer tool life The use of rigid tapping equipment is highly recommended with this style of tap Bright finish flutes improve chip flow in soft and non-ferrous materials
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Catalog Number | 1012668 |
| Class of Fit | 6H |
| Country of Origin | US |
| Finish|Coating | Bright |
| Gross Weight Per Pack | 0.0200 lb |
| Measurement System | Metric |
| Overall Length | 2-1/8 in |
| Series | 1785M |
| Shank Diameter | 0.168 in |
| Standards | ANSI Specified |
| Thread Length | 3/4 in |
| Type | Relieved |
| UPC 11 | 69846403688 |
| Stock Status | NONSTOCK |
| Brand | Dormer Pramet |
| Manufacturer | Dormer Pramet |
| Chamfer Type | Plug |
| Cutting Direction | Right Hand |
| Material | HSS |
| Material Application | Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials |
| Number of Flutes | 2 |
| Thread Limit | D4 |
| Thread Size | M4x0.7 |
| Spiral point taps are used to solve the problem of tap breakage in through hole tapping in a wide variety of materials |
| The angular flutes in the cutting face propel the chips ahead of the cutting zone, thus reducing loading and clogging in the flutes |
| The 1785M style features eccentrically relieved threads with full pitch diameter relief |
| These taps are extremely free cutting, resulting in longer tool life |
| The use of rigid tapping equipment is highly recommended with this style of tap |
| Bright finish flutes improve chip flow in soft and non-ferrous materials |
