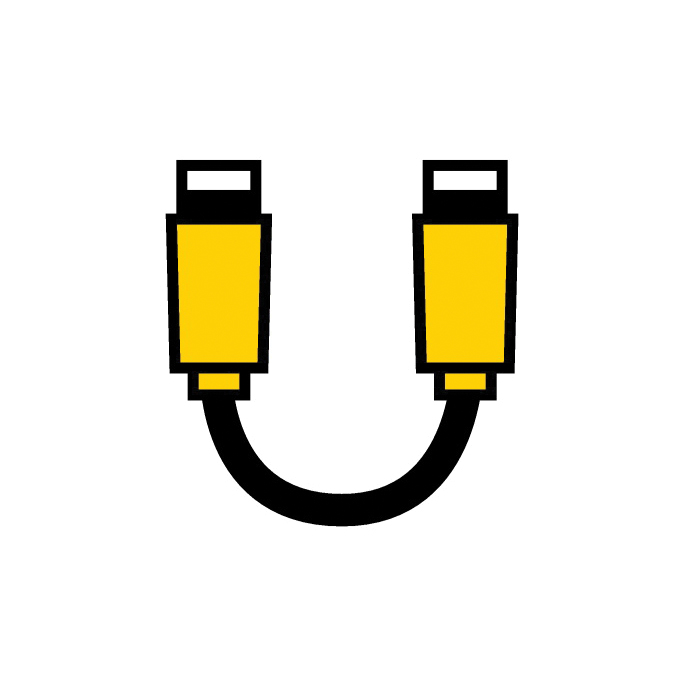

Turck powerfast™ RSV RKV 44-6M U-80202 Double Ended Cordset, 7/8-16 UN Straight Male x Straight Female Connector
Turck powerfast™ RSV RKV 44-6M U-80202 Double Ended Cordset, 7/8-16 UN Straight Male x Straight Female Connector
SKU876752
MFGR #U-80202
$/ea
Turck powerfast™ Cordset, Double Ended, Straight Male x Straight Female Connector, 7/8-16 UN Connector, Stainless Steel, 6 m Cable Length, TPE Cable, 4 Pole, 600 VAC, 15 A, Black/White/Red/green Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Turck powerfast™ Cordset, Double Ended, Straight Male x Straight Female Connector, 7/8-16 UN Connector, Stainless Steel, 6 m Cable Length, TPE Cable, 4 Pole, 600 VAC, 15 A, Black/White/Red/green Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 15 A Cable Material TPE Catalog Number U-80202 Connector Material Stainless Steel Gross Weight Per Pack 1 lb IEC Rating IP67 Length [Metric] 6 m NEMA Rating NEMA 1/3/4/6P Number Of Poles 4 Returnable N Standards CSA Certified, RoHS Complaint, UL Listed Type Double Ended Voltage Rating 600 VAC Wire Pin Colors Black/White/Red/green Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 6 m Connector Size 7/8-16 UN Connector Type Straight Male x Straight Female 4 conductors 14 AWG black cable PVC contact carrier Black PVC molded head material Gold plated brass contact material Passivated stainless steel coupling nut Black TPE outer jacket material Nylon/PVC conductor insulation material -40 to 90 deg C temperature
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 15 A |
| Cable Material | TPE |
| Catalog Number | U-80202 |
| Connector Material | Stainless Steel |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67 |
| Length [Metric] | 6 m |
| NEMA Rating | NEMA 1/3/4/6P |
| Number Of Poles | 4 |
| Returnable | N |
| Standards | CSA Certified, RoHS Complaint, UL Listed |
| Type | Double Ended |
| Voltage Rating | 600 VAC |
| Wire Pin Colors | Black/White/Red/green |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 6 m |
| Connector Size | 7/8-16 UN |
| Connector Type | Straight Male x Straight Female |
| 4 conductors |
| 14 AWG black cable |
| PVC contact carrier |
| Black PVC molded head material |
| Gold plated brass contact material |
| Passivated stainless steel coupling nut |
| Black TPE outer jacket material |
| Nylon/PVC conductor insulation material |
| -40 to 90 deg C temperature |
