Turck

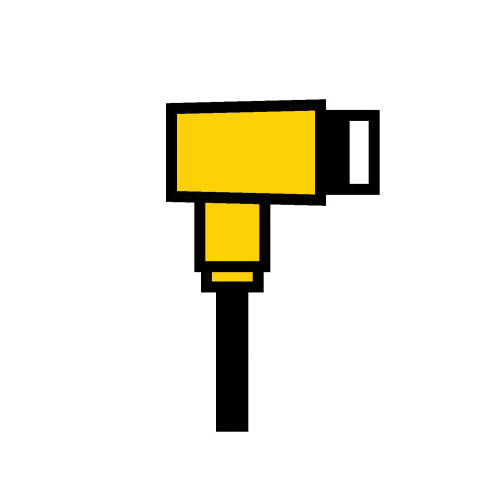

Turck powerfast™ GKDWM 44-4M D-Size Single Ended Cordset, 1-3/8-16 UN Right Angle Female Connector, 4 m L Cable, 4 Poles
Turck
Turck powerfast™ GKDWM 44-4M D-Size Single Ended Cordset, 1-3/8-16 UN Right Angle Female Connector, 4 m L Cable, 4 Poles
SKUPDW~11211793
MFGR #U-75143
$/ea
Turck powerfast™ Cordset, D-Size Single Ended, Right Angle Female Connector, 1-3/8-16 UN Connector, Brass, 4 m Cable Length, TPE Cable, 4 Pole, 600 VAC, 15 A, Black/Green/Red/White Wire Pin Colors, IP67/IP68/IP69K IEC Rating, NEMA 1/3/4/6P
Turck powerfast™ Cordset, D-Size Single Ended, Right Angle Female Connector, 1-3/8-16 UN Connector, Brass, 4 m Cable Length, TPE Cable, 4 Pole, 600 VAC, 15 A, Black/Green/Red/White Wire Pin Colors, IP67/IP68/IP69K IEC Rating, NEMA 1/3/4/6P
Amperage Rating 15 A Cable Material TPE Catalog Number U-75143 Connector Material Brass Gross Weight Per Pack 1 lb IEC Rating IP67/IP68/IP69K Length [Metric] 4 m NEMA Rating NEMA 1/3/4/6P/IP67/68/69K Number Of Poles 4 Returnable N Standards RoHS Complaint, UL Listed Type D-Size Single End Voltage Rating 600 VAC Wire Pin Colors Black/Green/Red/White Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 4 m Connector Size 1-3/8-16 UN Connector Type Right Angle Female 4 conductors 14 AWG black cable Black PVC contact carrier Black PVC molded head material Gold plated brass or copper contact material Nickel plated brass coupling nut Black TPE outer jacket material Nylon/PVC conductor insulation material -40 to 90 deg C temperature
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 15 A |
| Cable Material | TPE |
| Catalog Number | U-75143 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67/IP68/IP69K |
| Length [Metric] | 4 m |
| NEMA Rating | NEMA 1/3/4/6P/IP67/68/69K |
| Number Of Poles | 4 |
| Returnable | N |
| Standards | RoHS Complaint, UL Listed |
| Type | D-Size Single End |
| Voltage Rating | 600 VAC |
| Wire Pin Colors | Black/Green/Red/White |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 4 m |
| Connector Size | 1-3/8-16 UN |
| Connector Type | Right Angle Female |
| 4 conductors |
| 14 AWG black cable |
| Black PVC contact carrier |
| Black PVC molded head material |
| Gold plated brass or copper contact material |
| Nickel plated brass coupling nut |
| Black TPE outer jacket material |
| Nylon/PVC conductor insulation material |
| -40 to 90 deg C temperature |
