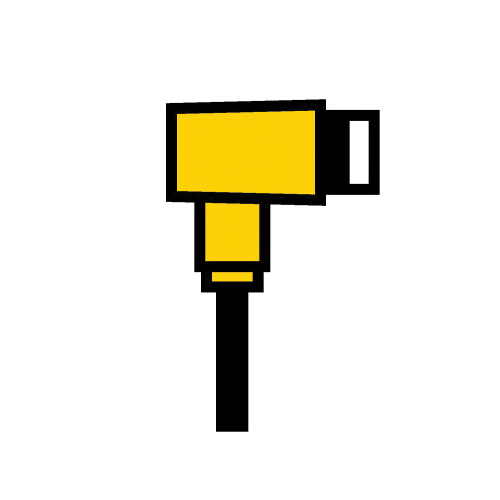

Turck powerfast™ GKDWM 42-5M/S4000 D-Size Single Ended Cordset, 1-3/8-16 UN Right Angle Female Connector, 5 m L Cable
Turck powerfast™ GKDWM 42-5M/S4000 D-Size Single Ended Cordset, 1-3/8-16 UN Right Angle Female Connector, 5 m L Cable
SKUPDW~10640736
MFGR #U-62016
$/ea
Turck powerfast™ Cordset, D-Size Single Ended, Right Angle Female Connector, 1-3/8-16 UN Connector, Brass, 5 m Cable Length, PVC Cable, 4 Pole, 600 VAC, 20 A, Black/Green/Red/White Wire Pin Colors, IP67/IP68/IP69K IEC Rating, NEMA 1/3/4/6P
Turck powerfast™ Cordset, D-Size Single Ended, Right Angle Female Connector, 1-3/8-16 UN Connector, Brass, 5 m Cable Length, PVC Cable, 4 Pole, 600 VAC, 20 A, Black/Green/Red/White Wire Pin Colors, IP67/IP68/IP69K IEC Rating, NEMA 1/3/4/6P
Amperage Rating 20 A Cable Material PVC Catalog Number U-62016 Connector Material Brass Gross Weight Per Pack 1 lb IEC Rating IP67/IP68/IP69K Length [Metric] 5 m NEMA Rating NEMA 1/3/4/6P/IP67/68/69K Number Of Poles 4 Returnable N Standards RoHS Complaint, UL Listed Type D-Size Single End Voltage Rating 600 VAC Wire Pin Colors Black/Green/Red/White Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 5 m Connector Size 1-3/8-16 UN Connector Type Right Angle Female 4 conductors 12 AWG black cable Black PVC contact carrier Black PVC molded head material Gold plated brass or copper contact material Nickel plated brass coupling nut Black PVC outer jacket material PVC conductor insulation material -40 to 90 deg C temperature
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 20 A |
| Cable Material | PVC |
| Catalog Number | U-62016 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67/IP68/IP69K |
| Length [Metric] | 5 m |
| NEMA Rating | NEMA 1/3/4/6P/IP67/68/69K |
| Number Of Poles | 4 |
| Returnable | N |
| Standards | RoHS Complaint, UL Listed |
| Type | D-Size Single End |
| Voltage Rating | 600 VAC |
| Wire Pin Colors | Black/Green/Red/White |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 5 m |
| Connector Size | 1-3/8-16 UN |
| Connector Type | Right Angle Female |
| 4 conductors |
| 12 AWG black cable |
| Black PVC contact carrier |
| Black PVC molded head material |
| Gold plated brass or copper contact material |
| Nickel plated brass coupling nut |
| Black PVC outer jacket material |
| PVC conductor insulation material |
| -40 to 90 deg C temperature |
