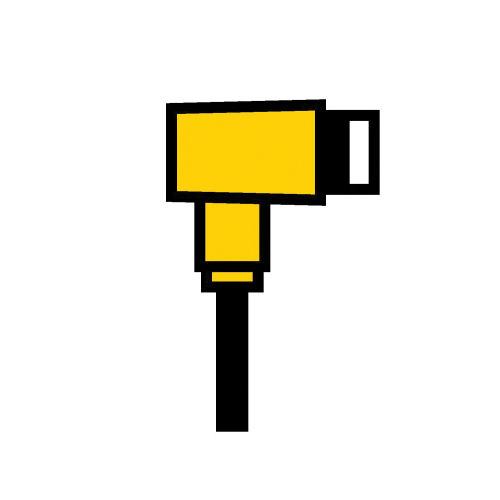

Turck picofast® PKWV 4M-6 Single Ended Cordset, M8 x 1 Right Angle Female Connector, 6 m L Cable, 4 Poles
Turck picofast® PKWV 4M-6 Single Ended Cordset, M8 x 1 Right Angle Female Connector, 6 m L Cable, 4 Poles
SKUPDW~10014291
MFGR #U-57091
$/ea
Turck picofast® Cordset, Single Ended, Right Angle Female Connector, M8 x 1 Connector, Stainless Steel, 6 m Cable Length, PVC Cable, 4 Pole, 125 VAC, 2 A, Brown/White/Blue/Black Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Turck picofast® Cordset, Single Ended, Right Angle Female Connector, M8 x 1 Connector, Stainless Steel, 6 m Cable Length, PVC Cable, 4 Pole, 125 VAC, 2 A, Brown/White/Blue/Black Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 2 A Cable Material PVC Catalog Number U-57091 Connector Material Stainless Steel Gross Weight Per Pack 1 lb IEC Rating IP67 Length [Metric] 6 m NEMA Rating NEMA 1/3/4/6P Number Of Poles 4 Returnable N Standards CSA Certified, RoHS Complaint, UL Listed Type Single Ended Voltage Rating 125 VAC Wire Pin Colors Brown/White/Blue/Black Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 6 m Connector Size M8 Connector Type Right Angle Female 4 conductors 26 AWG yellow cable Black nylon TPU contact carriers Yellow TPU molded head material Gold plated brass contact material Passivated stainless steel coupling nut Yellow PVC outer jacket material PVC conductor insulation material -40 to 105 deg C operating
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 2 A |
| Cable Material | PVC |
| Catalog Number | U-57091 |
| Connector Material | Stainless Steel |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67 |
| Length [Metric] | 6 m |
| NEMA Rating | NEMA 1/3/4/6P |
| Number Of Poles | 4 |
| Returnable | N |
| Standards | CSA Certified, RoHS Complaint, UL Listed |
| Type | Single Ended |
| Voltage Rating | 125 VAC |
| Wire Pin Colors | Brown/White/Blue/Black |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 6 m |
| Connector Size | M8 |
| Connector Type | Right Angle Female |
| 4 conductors |
| 26 AWG yellow cable |
| Black nylon TPU contact carriers |
| Yellow TPU molded head material |
| Gold plated brass contact material |
| Passivated stainless steel coupling nut |
| Yellow PVC outer jacket material |
| PVC conductor insulation material |
| -40 to 105 deg C operating |
