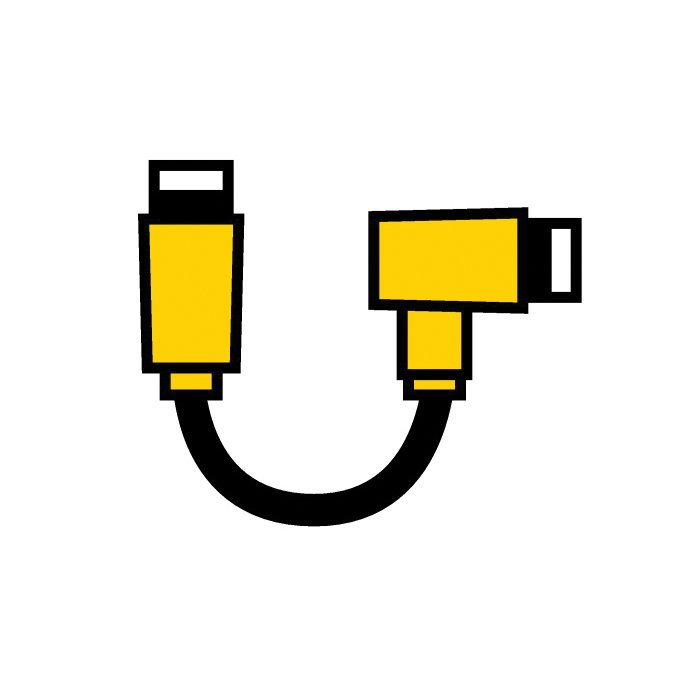

Turck multifast® CSM CKWM 19-19-10 Double Ended Cordset, M23 x 1 Straight Male x Right Angle Female Connector, 19 Poles
Turck multifast® CSM CKWM 19-19-10 Double Ended Cordset, M23 x 1 Straight Male x Right Angle Female Connector, 19 Poles
SKU1105144
MFGR #U0945-77
$/ea
Turck multifast® Cordset, Double Ended, Straight Male x Right Angle Female Connector, M23 x 1 Connector, Brass, Shielded Cable, 10 m Cable Length, PVC Cable, 19 Pole, 150 VAC, 9 A, Violet/Red/Gray/Red/Blue/Green/Blue/Gray/Pink/White/Green/White/Yellow/White/Gray/Black/Green/Yellow/Yellow/Brown/Brown/Green/White/Yellow/Pink/Gray/ Brown/Brown Wire Pin Colors, IP67 IEC Rating
Turck multifast® Cordset, Double Ended, Straight Male x Right Angle Female Connector, M23 x 1 Connector, Brass, Shielded Cable, 10 m Cable Length, PVC Cable, 19 Pole, 150 VAC, 9 A, Violet/Red/Gray/Red/Blue/Green/Blue/Gray/Pink/White/Green/White/Yellow/White/Gray/Black/Green/Yellow/Yellow/Brown/Brown/Green/White/Yellow/Pink/Gray/ Brown/Brown Wire Pin Colors, IP67 IEC Rating
Amperage Rating 9 A Cable Material PVC Cable Type Shielded Catalog Number U0945-77 Connector Material Brass Gross Weight Per Pack 1 lb IEC Rating IP67 Length [Metric] 10 m Number Of Poles 19 Returnable N Standards RoHS Compliant, UL Listed Type Double Ended Voltage Rating 150 VAC Wire Pin Colors Violet/Red/Gray/Red/Blue/Green/Blue/Gray/Pink/White/Green/White/Yellow/White/Gray/Black/Green/Yellow/Yellow/Brown/Brown/Green/White/Yellow/Pink/Gray/ Brown/Brown Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 10 m Connector Size M23 Connector Type Straight Male x Right Angle Female 18 and 22 AWG yellow cable Nylon/PBT contact carriers Black TPU molded head material Gold plated brass contact material Nickel plated brass coupling nut PVC/yellow outer cable jacket material PVC conductor insulation material -40 to 105 deg C operating 20 AWG drain/polyester foil shield
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Amperage Rating | 9 A |
| Cable Material | PVC |
| Cable Type | Shielded |
| Catalog Number | U0945-77 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67 |
| Length [Metric] | 10 m |
| Number Of Poles | 19 |
| Returnable | N |
| Standards | RoHS Compliant, UL Listed |
| Type | Double Ended |
| Voltage Rating | 150 VAC |
| Wire Pin Colors | Violet/Red/Gray/Red/Blue/Green/Blue/Gray/Pink/White/Green/White/Yellow/White/Gray/Black/Green/Yellow/Yellow/Brown/Brown/Green/White/Yellow/Pink/Gray/ Brown/Brown |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 10 m |
| Connector Size | M23 |
| Connector Type | Straight Male x Right Angle Female |
| 18 and 22 AWG yellow cable |
| Nylon/PBT contact carriers |
| Black TPU molded head material |
| Gold plated brass contact material |
| Nickel plated brass coupling nut |
| PVC/yellow outer cable jacket material |
| PVC conductor insulation material |
| -40 to 105 deg C operating |
| 20 AWG drain/polyester foil shield |
