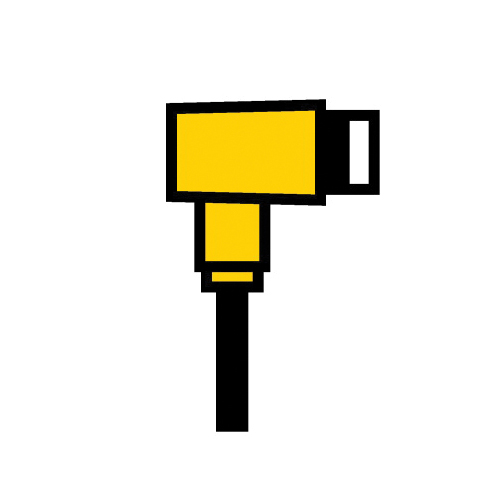

Turck multifastĀ® CKWM 19-19-6/S90 Single Ended Cordset, M23 x 1 Right Angle Female Connector, 6 m L Cable, 19 Poles
Turck multifastĀ® CKWM 19-19-6/S90 Single Ended Cordset, M23 x 1 Right Angle Female Connector, 6 m L Cable, 19 Poles
SKUPDW~12214533
MFGR #U-25570
$/ea
Turck multifastĀ® Cordset, Single Ended, Right Angle Female Connector, M23 x 1 Connector, Brass, Shielded Cable, 6 m Cable Length, TPU Cable, 19 Pole, 150 VAC, 9 A, Violet/Red/Gray/Red/Blue/Green/Blue/Gray/Pink/White/Green/White/Yellow/White/Gray/Black/Green/Yellow/Yellow/Brown/Brown/Green/White/Yellow/Pink/Gray/Brown/Brown Wire Pin Colors, IP67 IEC Rating
Turck multifastĀ® Cordset, Single Ended, Right Angle Female Connector, M23 x 1 Connector, Brass, Shielded Cable, 6 m Cable Length, TPU Cable, 19 Pole, 150 VAC, 9 A, Violet/Red/Gray/Red/Blue/Green/Blue/Gray/Pink/White/Green/White/Yellow/White/Gray/Black/Green/Yellow/Yellow/Brown/Brown/Green/White/Yellow/Pink/Gray/Brown/Brown Wire Pin Colors, IP67 IEC Rating
Amperage Rating 9 A Cable Material TPU Cable Type Shielded Catalog Number U-25570 Connector Material Brass Gross Weight Per Pack 1 lb IEC Rating IP67 Length [Metric] 6 m Number Of Poles 19 Returnable N Standards RoHS Complaint, UL Listed Type Single Ended Voltage Rating 150 VAC Wire Pin Colors Violet/Red/Gray/Red/Blue/Green/Blue/Gray/Pink/White/Green/White/Yellow/White/Gray/Black/Green/Yellow/Yellow/Brown/Brown/Green/White/Yellow/Pink/Gray/Brown/Brown Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 6 m Connector Size M23 Connector Type Right Angle Female 19 conductors 18 and 22 AWG gray cable Nylon or PBT contact carriers Black TPU molded head material Gold plated brass contact material Nickel plated brass coupling nut Yellow TPU outer jacket material PVC conductor insulation material -40 to 90 deg C temperature DC color code Standard wiring 20 AWG drain/polyester foil shield
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 9 A |
| Cable Material | TPU |
| Cable Type | Shielded |
| Catalog Number | U-25570 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67 |
| Length [Metric] | 6 m |
| Number Of Poles | 19 |
| Returnable | N |
| Standards | RoHS Complaint, UL Listed |
| Type | Single Ended |
| Voltage Rating | 150 VAC |
| Wire Pin Colors | Violet/Red/Gray/Red/Blue/Green/Blue/Gray/Pink/White/Green/White/Yellow/White/Gray/Black/Green/Yellow/Yellow/Brown/Brown/Green/White/Yellow/Pink/Gray/Brown/Brown |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 6 m |
| Connector Size | M23 |
| Connector Type | Right Angle Female |
| 19 conductors |
| 18 and 22 AWG gray cable |
| Nylon or PBT contact carriers |
| Black TPU molded head material |
| Gold plated brass contact material |
| Nickel plated brass coupling nut |
| Yellow TPU outer jacket material |
| PVC conductor insulation material |
| -40 to 90 deg C temperature |
| DC color code |
| Standard wiring |
| 20 AWG drain/polyester foil shield |
