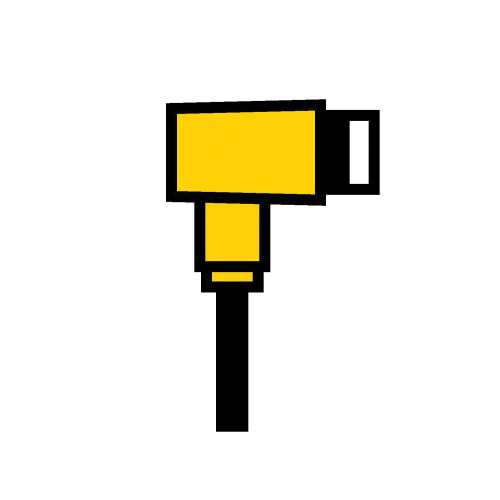

Turck minifast® WKV 45-098-15M/S3001/CS10455 Single Ended Cordset, 7/8-16 UN Right Angle Female Connector, 15 m L Cable
Turck minifast® WKV 45-098-15M/S3001/CS10455 Single Ended Cordset, 7/8-16 UN Right Angle Female Connector, 15 m L Cable
SKUPDW~6338263
MFGR #U-32257
$/ea
Turck minifast® Cordset, Single Ended, Right Angle Female Connector, 7/8-16 UN Connector, Shielded Cable, 15 m Cable Length, PVC Cable, 4 Pole, 300 VAC, 9 A, White/Black/Drain/Green Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Turck minifast® Cordset, Single Ended, Right Angle Female Connector, 7/8-16 UN Connector, Shielded Cable, 15 m Cable Length, PVC Cable, 4 Pole, 300 VAC, 9 A, White/Black/Drain/Green Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 9 A Cable Material PVC Cable Type Shielded Catalog Number U-32257 Gross Weight Per Pack 1 lb IEC Rating IP67 Length [Metric] 15 m NEMA Rating NEMA 1/3/4/6P/IP67 Number Of Poles 4 Returnable N Standards CSA Certified, UL Listed Type Single End Voltage Rating 300 VAC Wire Pin Colors Black/Green/White Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 15 m Connector Size 7/8-16 UN Connector Type Right Angle Female 3 x 16 AWG wire PVC contact carrier Alpine Green PVC molded head material Gold plated brass contact material Passivated plated stainless steel coupling nut Plum PVC outer jacket material PVC conductor insulation material -40 to 105 deg C operating 18 AWG drain, aluminum foil shield 1 shielded twisted pair, 1 ground, 1 drain
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 9 A |
| Cable Material | PVC |
| Cable Type | Shielded |
| Catalog Number | U-32257 |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67 |
| Length [Metric] | 15 m |
| NEMA Rating | NEMA 1/3/4/6P/IP67 |
| Number Of Poles | 4 |
| Returnable | N |
| Standards | CSA Certified, UL Listed |
| Type | Single End |
| Voltage Rating | 300 VAC |
| Wire Pin Colors | Black/Green/White |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 15 m |
| Connector Size | 7/8-16 UN |
| Connector Type | Right Angle Female |
| 3 x 16 AWG wire |
| PVC contact carrier |
| Alpine Green PVC molded head material |
| Gold plated brass contact material |
| Passivated plated stainless steel coupling nut |
| Plum PVC outer jacket material |
| PVC conductor insulation material |
| -40 to 105 deg C operating |
| 18 AWG drain, aluminum foil shield |
| 1 shielded twisted pair, 1 ground, 1 drain |
