Turck

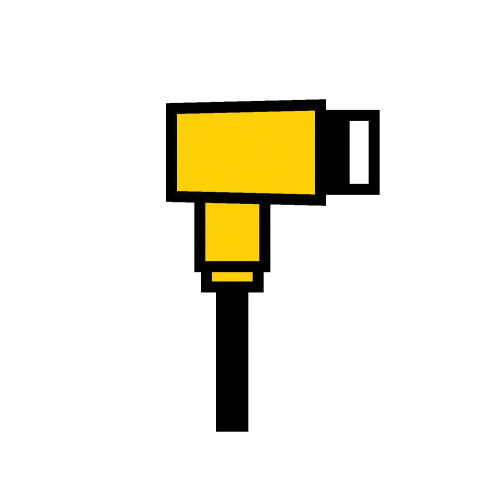

Turck minifast® WKM 50-1M/S1052 Single Ended Cordset, 7/8-16 UN Right Angle Female Connector, 1 m L Cable, 5 Poles
Turck
Turck minifast® WKM 50-1M/S1052 Single Ended Cordset, 7/8-16 UN Right Angle Female Connector, 1 m L Cable, 5 Poles
SKUPDW~10647317
MFGR #U-73214
$/ea
Turck minifast® Cordset, Single Ended, Right Angle Female Connector, 7/8-16 UN Connector, Brass, 1 m Cable Length, PVC Cable, 5 Pole, 300 VAC, 9 A, Black/Blue/Green/Yellow/Brown/White Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Turck minifast® Cordset, Single Ended, Right Angle Female Connector, 7/8-16 UN Connector, Brass, 1 m Cable Length, PVC Cable, 5 Pole, 300 VAC, 9 A, Black/Blue/Green/Yellow/Brown/White Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 9 A Cable Material PVC Catalog Number U-73214 Connector Material Brass Gross Weight Per Pack 1 lb IEC Rating IP67 Length [Metric] 1 m NEMA Rating NEMA 1/3/4/6P Number Of Poles 5 Returnable N Standards CSA Certified, RoHS Complaint, UL Listed Type Single Ended Voltage Rating 300 VAC Wire Pin Colors Black/Blue/Green/Yellow/Brown/White Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 1 m Connector Size 7/8-16 UN Connector Type Right Angle Female 5 conductors 18 AWG gray cable TPU contact carrier Yellow TPU molded head material Gold plated brass contact material Nickel plated brass coupling nut Gray PVC outer jacket material PVC conductor insulation material -40 to 105 deg C operating
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Amperage Rating | 9 A |
| Cable Material | PVC |
| Catalog Number | U-73214 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67 |
| Length [Metric] | 1 m |
| NEMA Rating | NEMA 1/3/4/6P |
| Number Of Poles | 5 |
| Returnable | N |
| Standards | CSA Certified, RoHS Complaint, UL Listed |
| Type | Single Ended |
| Voltage Rating | 300 VAC |
| Wire Pin Colors | Black/Blue/Green/Yellow/Brown/White |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 1 m |
| Connector Size | 7/8-16 UN |
| Connector Type | Right Angle Female |
| 5 conductors |
| 18 AWG gray cable |
| TPU contact carrier |
| Yellow TPU molded head material |
| Gold plated brass contact material |
| Nickel plated brass coupling nut |
| Gray PVC outer jacket material |
| PVC conductor insulation material |
| -40 to 105 deg C operating |
