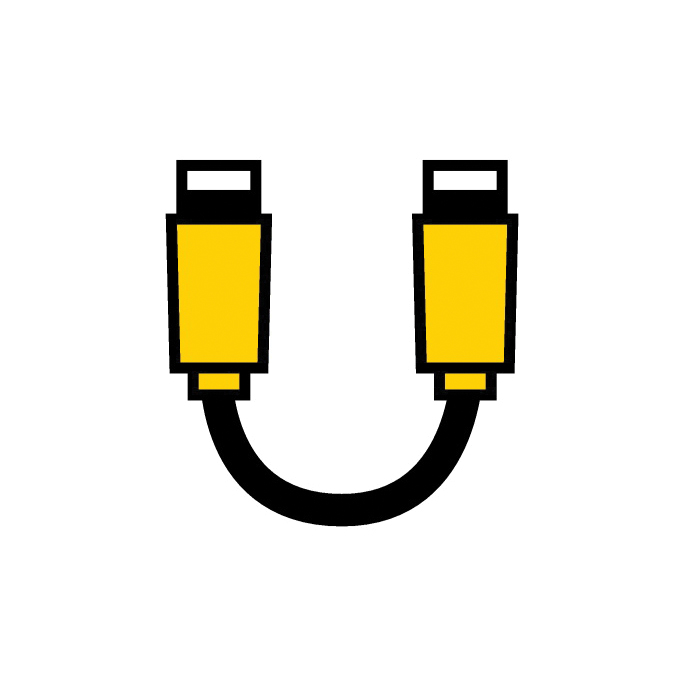

Turck minifast® RYM RKM 126-1M Double Ended Cordset, 1-1/8-16 UN Straight Male x Straight Female Connector, 1 m L Cable
Turck minifast® RYM RKM 126-1M Double Ended Cordset, 1-1/8-16 UN Straight Male x Straight Female Connector, 1 m L Cable
SKUPDW~12258852
MFGR #U-49743
$/ea
Turck minifast® Cordset, Double Ended, Straight Male x Straight Female Connector, 1-1/8-16 UN Connector, Brass, 1 m Cable Length, PVC Cable, 12 Pole, 600 VAC, 7 A, Orange/Blue/White/Black/Red/Black/Green/Black/Orange/Black/Blue/Black/Black/White/Green/Red/White/Black Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Turck minifast® Cordset, Double Ended, Straight Male x Straight Female Connector, 1-1/8-16 UN Connector, Brass, 1 m Cable Length, PVC Cable, 12 Pole, 600 VAC, 7 A, Orange/Blue/White/Black/Red/Black/Green/Black/Orange/Black/Blue/Black/Black/White/Green/Red/White/Black Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 7 A Cable Material PVC Catalog Number U-49743 Connector Material Brass Gross Weight Per Pack 1 lb IEC Rating IP68 Length [Metric] 1 m NEMA Rating NEMA 1/3/4/6P Number Of Poles 12 Returnable N Standards RoHS Complaint, UL Listed Type Double Ended Voltage Rating 600 VAC Wire Pin Colors Orange/Blue/White/Black/Red/Black/Green/Black/Orange/Black/Blue/Black/Black/White/Green/Red/White/Black Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 1 m Connector Size 1-1/8-16 UN Connector Type Straight Male x Straight Female 12 AWG wire 16 AWG yellow cable TPU contact carrier Yellow TPU molded head material Gold plated brass contact material Nickel plated brass coupling nut Yellow PVC outer jacket material PVC conductor insulation material -40 to 105 deg C operating
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Amperage Rating | 7 A |
| Cable Material | PVC |
| Catalog Number | U-49743 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP68 |
| Length [Metric] | 1 m |
| NEMA Rating | NEMA 1/3/4/6P |
| Number Of Poles | 12 |
| Returnable | N |
| Standards | RoHS Complaint, UL Listed |
| Type | Double Ended |
| Voltage Rating | 600 VAC |
| Wire Pin Colors | Orange/Blue/White/Black/Red/Black/Green/Black/Orange/Black/Blue/Black/Black/White/Green/Red/White/Black |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 1 m |
| Connector Size | 1-1/8-16 UN |
| Connector Type | Straight Male x Straight Female |
| 12 AWG wire |
| 16 AWG yellow cable |
| TPU contact carrier |
| Yellow TPU molded head material |
| Gold plated brass contact material |
| Nickel plated brass coupling nut |
| Yellow PVC outer jacket material |
| PVC conductor insulation material |
| -40 to 105 deg C operating |
