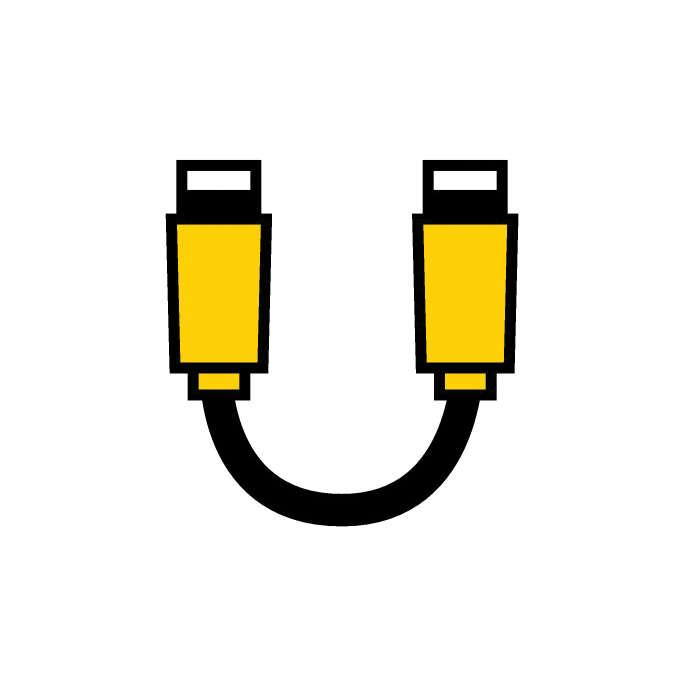

Turck minifast® RSM RSM 86-6.5M Double Ended Cordset, 1-16 UN Straight Male Connector, 6.5 m L Cable, 8 Poles
Turck minifast® RSM RSM 86-6.5M Double Ended Cordset, 1-16 UN Straight Male Connector, 6.5 m L Cable, 8 Poles
SKUPDW~12253750
MFGR #U-24276
$/ea
Turck minifast® Cordset, Double Ended, Straight Male Connector, 1-16 UN Connector, Brass, 6.5 m Cable Length, PVC Cable, 8 Pole, 600 VAC, 8 A, Orange/Blue/White/Black/Black/White/Red/Green/Red/Black Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Turck minifast® Cordset, Double Ended, Straight Male Connector, 1-16 UN Connector, Brass, 6.5 m Cable Length, PVC Cable, 8 Pole, 600 VAC, 8 A, Orange/Blue/White/Black/Black/White/Red/Green/Red/Black Wire Pin Colors, IP68 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 8 A Cable Material PVC Catalog Number U-24276 Connector Material Brass Gross Weight Per Pack 1 lb IEC Rating IP68 Length [Metric] 6.5 m NEMA Rating NEMA 1/3/4/6P/IP68 Number Of Poles 8 Returnable N Standards RoHS Complaint Type Double End Voltage Rating 600 VAC Wire Pin Colors Black/Blue/Green/Orange/Red/White Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 6.5 m Connector Size 1-16 UN Connector Type Straight Male 8 conductors 16 AWG yellow cable TPU contact carrier Yellow TPU molded head material Gold plated brass contact material Nickel plated brass coupling nut Yellow PVC outer jacket material PVC conductor insulation material -40 to 105 deg C operating
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Amperage Rating | 8 A |
| Cable Material | PVC |
| Catalog Number | U-24276 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP68 |
| Length [Metric] | 6.5 m |
| NEMA Rating | NEMA 1/3/4/6P/IP68 |
| Number Of Poles | 8 |
| Returnable | N |
| Standards | RoHS Complaint |
| Type | Double End |
| Voltage Rating | 600 VAC |
| Wire Pin Colors | Black/Blue/Green/Orange/Red/White |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 6.5 m |
| Connector Size | 1-16 UN |
| Connector Type | Straight Male |
| 8 conductors |
| 16 AWG yellow cable |
| TPU contact carrier |
| Yellow TPU molded head material |
| Gold plated brass contact material |
| Nickel plated brass coupling nut |
| Yellow PVC outer jacket material |
| PVC conductor insulation material |
| -40 to 105 deg C operating |
