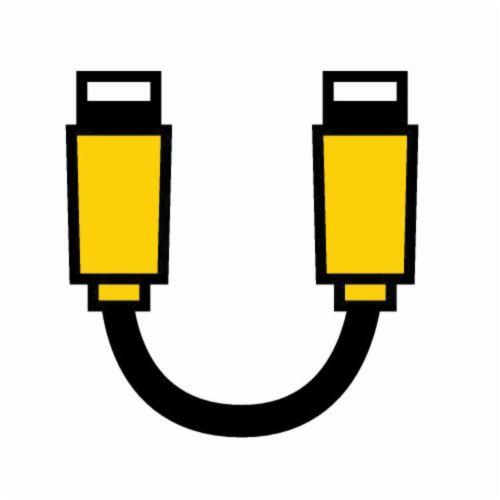

Turck minifast® RSM RKM 461-12M Double Ended Cordset, 7/8-16 UN Straight Male x Straight Female Connector, 12 m L Cable
Turck minifast® RSM RKM 461-12M Double Ended Cordset, 7/8-16 UN Straight Male x Straight Female Connector, 12 m L Cable
SKU679622
MFGR #U-01753
$/ea
Turck minifast® Cordset, Double Ended, Straight Male x Straight Female Connector, 7/8-16 UN Connector, Brass, 12 m Cable Length, PVC Cable, 4 Pole, 600 VAC, 10 A, Brown/White/Blue/Green/Yellow Wire Pin Colors, NEMA 1/3/4/6P/IP67
Turck minifast® Cordset, Double Ended, Straight Male x Straight Female Connector, 7/8-16 UN Connector, Brass, 12 m Cable Length, PVC Cable, 4 Pole, 600 VAC, 10 A, Brown/White/Blue/Green/Yellow Wire Pin Colors, NEMA 1/3/4/6P/IP67
Amperage Rating 10 A Cable Material PVC Catalog Number U-01753 Connector Material Brass Gross Weight Per Pack 1 lb Length [Metric] 12 m NEMA Rating NEMA 1/3/4/6P/IP67 Number Of Poles 4 Returnable N Standards UL Listed, CSA Certified, RoHS Compliant Type Double End Voltage Rating 600 VAC Wire Pin Colors Blue/Brown/Green/White/Yellow Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 12 m Connector Size 7/8-16 UN Connector Type Straight Male x Straight Female Yellow cable jacket color Nickel plated Brass coupling nut Gold plated brass contact material 4 x 16 AWG conductors TPU contact carrier and TPU yellow molded head -40 to 105 deg C operating temperature 4 conductors PVC conductor insulation
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Amperage Rating | 10 A |
| Cable Material | PVC |
| Catalog Number | U-01753 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| Length [Metric] | 12 m |
| NEMA Rating | NEMA 1/3/4/6P/IP67 |
| Number Of Poles | 4 |
| Returnable | N |
| Standards | UL Listed, CSA Certified, RoHS Compliant |
| Type | Double End |
| Voltage Rating | 600 VAC |
| Wire Pin Colors | Blue/Brown/Green/White/Yellow |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 12 m |
| Connector Size | 7/8-16 UN |
| Connector Type | Straight Male x Straight Female |
| Yellow cable jacket color |
| Nickel plated Brass coupling nut |
| Gold plated brass contact material |
| 4 x 16 AWG conductors |
| TPU contact carrier and TPU yellow molded head |
| -40 to 105 deg C operating temperature |
| 4 conductors |
| PVC conductor insulation |
