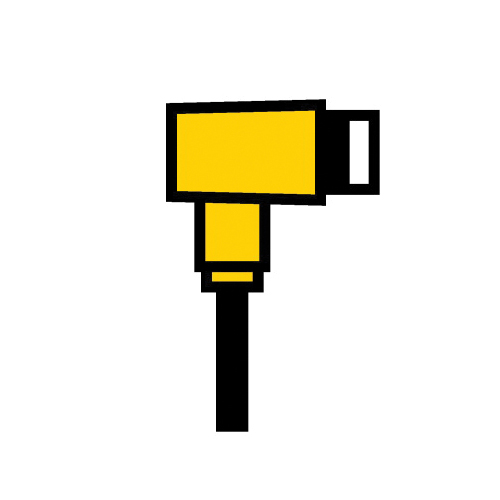

Turck minifast® P-WKV 45-098-25M Single Ended Cordset, 7/8-16 UN Right Angle Female Connector, 25 m L Cable, 4 Poles
Turck minifast® P-WKV 45-098-25M Single Ended Cordset, 7/8-16 UN Right Angle Female Connector, 25 m L Cable, 4 Poles
SKU1167968
MFGR #U-69474
$/ea
Turck minifast® Cordset, Single Ended, Right Angle Female Connector, 7/8-16 UN Connector, Stainless Steel, Shielded Cable, 25 m Cable Length, PVC Cable, 4 Pole, 300 VAC, 10 A, White/Black/Drain/Green Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Turck minifast® Cordset, Single Ended, Right Angle Female Connector, 7/8-16 UN Connector, Stainless Steel, Shielded Cable, 25 m Cable Length, PVC Cable, 4 Pole, 300 VAC, 10 A, White/Black/Drain/Green Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 10 A Cable Material PVC Cable Type Shielded Catalog Number U-69474 Connector Material Stainless Steel Gross Weight Per Pack 1 lb IEC Rating IP67 Length [Metric] 25 m NEMA Rating NEMA 1/3/4/6P/IP67 Number Of Poles 4 Returnable N Standards CSA, CSA PA, FM Division 2 Certified, RoHS Complaint, UL Listed Type Single End Voltage Rating 300 VAC Wire Pin Colors Black/Green/White Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 25 m Connector Size 7/8-16 UN Connector Type Right Angle Female 4 conductors 16 AWG plum cable Black TPU contact carrier Black TPU molded head material Gold plated brass contact material Passivated stainless steel coupling nut Plum TPV outer jacket material PVC conductor insulation material -40 to 105 deg C operating 18 AWG drain, aluminum foil shield 1 shielded twisted pair, 1 ground, 1 drain
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 10 A |
| Cable Material | PVC |
| Cable Type | Shielded |
| Catalog Number | U-69474 |
| Connector Material | Stainless Steel |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67 |
| Length [Metric] | 25 m |
| NEMA Rating | NEMA 1/3/4/6P/IP67 |
| Number Of Poles | 4 |
| Returnable | N |
| Standards | CSA, CSA PA, FM Division 2 Certified, RoHS Complaint, UL Listed |
| Type | Single End |
| Voltage Rating | 300 VAC |
| Wire Pin Colors | Black/Green/White |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 25 m |
| Connector Size | 7/8-16 UN |
| Connector Type | Right Angle Female |
| 4 conductors |
| 16 AWG plum cable |
| Black TPU contact carrier |
| Black TPU molded head material |
| Gold plated brass contact material |
| Passivated stainless steel coupling nut |
| Plum TPV outer jacket material |
| PVC conductor insulation material |
| -40 to 105 deg C operating |
| 18 AWG drain, aluminum foil shield |
| 1 shielded twisted pair, 1 ground, 1 drain |
