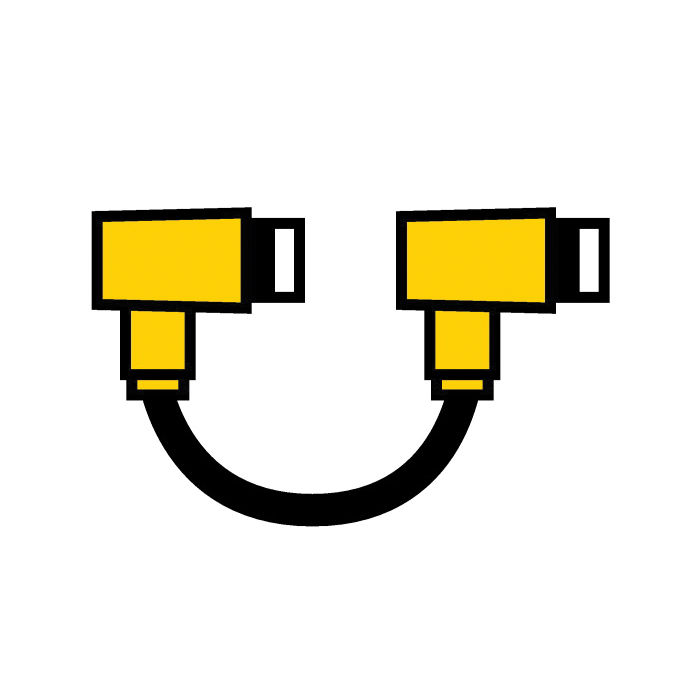

Turck minifast® Eurofast® WSV WKCV 5711-5M Double Ended Cordset, 7/8-16 UN Right Angle Female Connector, 5 m L Cable
Turck minifast® Eurofast® WSV WKCV 5711-5M Double Ended Cordset, 7/8-16 UN Right Angle Female Connector, 5 m L Cable
SKU793299
MFGR #U-74270
$/ea
Turck minifast® Eurofast® Cordset, Double Ended, Right Angle Female Connector, 7/8-16 UN Connector, Stainless Steel, Shielded Cable, 5 m Cable Length, PVC Cable, 5 Pole, 250 VAC, 4 A, Bare/Red/Black/White/Blue Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Turck minifast® Eurofast® Cordset, Double Ended, Right Angle Female Connector, 7/8-16 UN Connector, Stainless Steel, Shielded Cable, 5 m Cable Length, PVC Cable, 5 Pole, 250 VAC, 4 A, Bare/Red/Black/White/Blue Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 4 A Cable Material PVC Cable Type Shielded Catalog Number U-74270 Connector Material Stainless Steel Gross Weight Per Pack 1 lb IEC Rating IP67 Length [Metric] 5 m NEMA Rating NEMA 1/3/4/6P Number Of Poles 5 Returnable NO Type Double Ended Voltage Rating 250 VAC Wire Pin Colors Bare/Red/Black/White/Blue Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 5 m Connector Size 7/8-16 UN Connector Type Right Angle Female 5 conductors 16/20 AWG yellow cable Nylon TPU contact carriers Blue-grey TPU molded head material Gold plated brass contact material Passivated stainless steel coupling nut Grey PVC outer jacket material PE, PVC conductor insulation material -40 to 80 deg C temperature 20 AWG drain, foil (pairs), foil (overall) DeviceNet™ fieldbus protocol
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Amperage Rating | 4 A |
| Cable Material | PVC |
| Cable Type | Shielded |
| Catalog Number | U-74270 |
| Connector Material | Stainless Steel |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67 |
| Length [Metric] | 5 m |
| NEMA Rating | NEMA 1/3/4/6P |
| Number Of Poles | 5 |
| Returnable | NO |
| Type | Double Ended |
| Voltage Rating | 250 VAC |
| Wire Pin Colors | Bare/Red/Black/White/Blue |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 5 m |
| Connector Size | 7/8-16 UN |
| Connector Type | Right Angle Female |
| 5 conductors |
| 16/20 AWG yellow cable |
| Nylon TPU contact carriers |
| Blue-grey TPU molded head material |
| Gold plated brass contact material |
| Passivated stainless steel coupling nut |
| Grey PVC outer jacket material |
| PE, PVC conductor insulation material |
| -40 to 80 deg C temperature |
| 20 AWG drain, foil (pairs), foil (overall) |
| DeviceNet™ fieldbus protocol |
