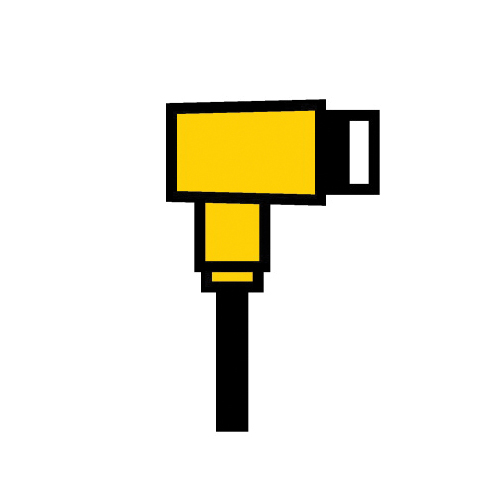

Turck minifast® DeviceNet™ WKV 5711-4M Single Ended Cordset, 7/8-16 UN Right Angle Female Connector, 4 m L Cable
Turck minifast® DeviceNet™ WKV 5711-4M Single Ended Cordset, 7/8-16 UN Right Angle Female Connector, 4 m L Cable
SKU849181
MFGR #U-21113
$/ea
Turck minifast® DeviceNet™ Cordset, Single Ended, Right Angle Female Connector, 7/8-16 UN Connector, Stainless Steel, Shielded Cable, 4 m Cable Length, PVC Cable, 5 Pole, 300 VAC, 9 A, Bare/Red/Black/White/Blue Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Turck minifast® DeviceNet™ Cordset, Single Ended, Right Angle Female Connector, 7/8-16 UN Connector, Stainless Steel, Shielded Cable, 4 m Cable Length, PVC Cable, 5 Pole, 300 VAC, 9 A, Bare/Red/Black/White/Blue Wire Pin Colors, IP67 IEC Rating, NEMA 1/3/4/6P
Amperage Rating 9 A Cable Material PVC Cable Type Shielded Catalog Number U-21113 Connector Material Stainless Steel Gross Weight Per Pack 1 lb IEC Rating IP67 Length [Metric] 4 m NEMA Rating NEMA 1/3/4/6P/IP67 Number Of Poles 5 Returnable N Standards CSA Certified, FM Division, RoHS Complaint, UL Listed Type Single End Voltage Rating 300 VAC Wire Pin Colors Black/Blue/Red/White Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 4 m Connector Size 7/8-16 UN Connector Type Right Angle Female 5 conductors 16/20 AWG gray cable Blue-gray TPU contact carrier Blue-gray TPU molded head material Gold plated brass contact material Passivated finish stainless steel coupling nut Gray PVC outer jacket material PE, PVC conductor insulation material -40 to 75 deg C temperature 20 AWG drain/polyester foil shield DeviceNet fieldbus protocol
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Amperage Rating | 9 A |
| Cable Material | PVC |
| Cable Type | Shielded |
| Catalog Number | U-21113 |
| Connector Material | Stainless Steel |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67 |
| Length [Metric] | 4 m |
| NEMA Rating | NEMA 1/3/4/6P/IP67 |
| Number Of Poles | 5 |
| Returnable | N |
| Standards | CSA Certified, FM Division, RoHS Complaint, UL Listed |
| Type | Single End |
| Voltage Rating | 300 VAC |
| Wire Pin Colors | Black/Blue/Red/White |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 4 m |
| Connector Size | 7/8-16 UN |
| Connector Type | Right Angle Female |
| 5 conductors |
| 16/20 AWG gray cable |
| Blue-gray TPU contact carrier |
| Blue-gray TPU molded head material |
| Gold plated brass contact material |
| Passivated finish stainless steel coupling nut |
| Gray PVC outer jacket material |
| PE, PVC conductor insulation material |
| -40 to 75 deg C temperature |
| 20 AWG drain/polyester foil shield |
| DeviceNet fieldbus protocol |
