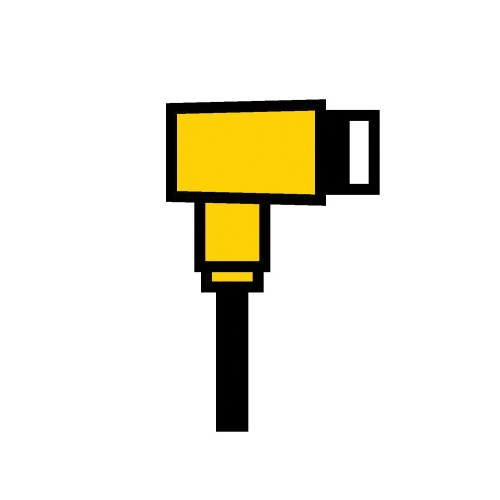

Turck microfast® WKB 4T-4 Single Ended Cordset, 1/2-20 UNF Right Angle Female Connector, 4 m L Cable, 4 Poles
Turck microfast® WKB 4T-4 Single Ended Cordset, 1/2-20 UNF Right Angle Female Connector, 4 m L Cable, 4 Poles
SKU274430
MFGR #U2495
Your Cost: $33.33/ea
List: Turck microfast® Cordset, Single Ended, Right Angle Female Connector, 1/2-20 UNF Connector, Brass, 4 m Cable Length, PVC Cable, 4 Pole, 250 VAC, 4 A, Red/Black/Red/White/Red/Green Wire Pin Colors, IP67/IP68/IP69K IEC Rating, NEMA 1/3/4/6P
Turck microfast® Cordset, Single Ended, Right Angle Female Connector, 1/2-20 UNF Connector, Brass, 4 m Cable Length, PVC Cable, 4 Pole, 250 VAC, 4 A, Red/Black/Red/White/Red/Green Wire Pin Colors, IP67/IP68/IP69K IEC Rating, NEMA 1/3/4/6P
Amperage Rating 4 A Cable Material PVC Catalog Number U2495 Connector Material Brass Gross Weight Per Pack 1 lb IEC Rating IP67/IP68/IP69K Length [Metric] 4 m NEMA Rating NEMA 1/3/4/6P/IP67/68/69K Number Of Poles 4 Returnable N Standards CSA Certified, RoHS Complaint, UL Listed Type Single End Voltage Rating 250 VAC Wire Pin Colors Black/Green/Red/White Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 4 m Connector Size 1/2-20 UNF Connector Type Right Angle Female 4 conductors 22 AWG yellow cable Nylon contact carrier Yellow TPU molded head material Gold plated brass contact material Nickel plated brass coupling nut PVC conductor insulation material -40 to 105 deg C operating Features B-code M12
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Features
- Substitute Products
| Amperage Rating | 4 A |
| Cable Material | PVC |
| Catalog Number | U2495 |
| Connector Material | Brass |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67/IP68/IP69K |
| Length [Metric] | 4 m |
| NEMA Rating | NEMA 1/3/4/6P/IP67/68/69K |
| Number Of Poles | 4 |
| Returnable | N |
| Standards | CSA Certified, RoHS Complaint, UL Listed |
| Type | Single End |
| Voltage Rating | 250 VAC |
| Wire Pin Colors | Black/Green/Red/White |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 4 m |
| Connector Size | 1/2-20 UNF |
| Connector Type | Right Angle Female |
| 4 conductors |
| 22 AWG yellow cable |
| Nylon contact carrier |
| Yellow TPU molded head material |
| Gold plated brass contact material |
| Nickel plated brass coupling nut |
| PVC conductor insulation material |
| -40 to 105 deg C operating |
| Features B-code M12 |
