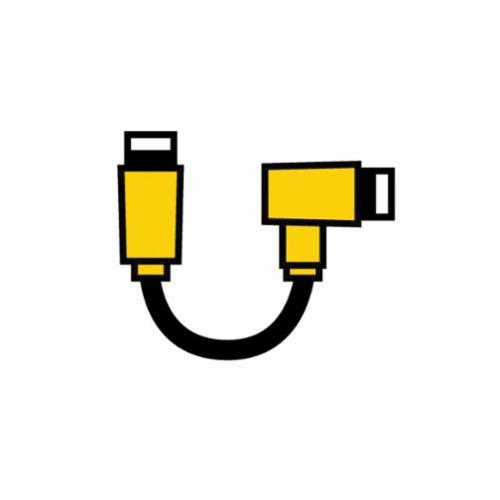

Turck microfast® U-32940 Double Ended Cordset, 1/2-20 UNF Right Angle Female x Straight Male Connector, 3 m L Cable
Turck microfast® U-32940 Double Ended Cordset, 1/2-20 UNF Right Angle Female x Straight Male Connector, 3 m L Cable
SKUPDW~12266017
MFGR #U-32940
$/ea
At Turck, we consider it our job to help our customers decrease failures and reduce operation downtime. That?s why we offer a complimentary audit program. The audit helps you identify, evaluate, and solve problem areas where sensors and cordsets are continually damaged or destroyed. This reduction in downtime will save you costs, ensuring you get the most out of your production processes.
At Turck, we consider it our job to help our customers decrease failures and reduce operation downtime. That?s why we offer a complimentary audit program. The audit helps you identify, evaluate, and solve problem areas where sensors and cordsets are continually damaged or destroyed. This reduction in downtime will save you costs, ensuring you get the most out of your production processes.
Amperage Rating 4 A Angle IP67/IP68/IP69K Cable Material PVC Cable Type Jacketed Catalog Number U-32940 Connector Material TPU Gross Weight Per Pack 1 lb IEC Rating IP67/IP68/IP69K Length [Metric] 3 m NEMA Rating NEMA 1/3/4/6P Number Of Poles 6 Returnable N Series Right Angle Female x Straight Male Standards UL Listed, RoHS Compliant Type Double Ended Voltage Rating 250 VAC Wire Pin Colors Red/White/Green/Yellow/Black/Blue Stock Status NONSTOCK Brand Turck Manufacturer Turck, Inc. Cable Length 3 m Connector Size 1/2-20 UNF Connector Type Right Angle Female x Straight Male Keyway Double -40 to 105 deg C temperature range 6 x 22 AWG conductor/cable size Yellow conductor and outer jacket cable color Nylon contact carrier Gold plated brass contact material Nickel-plated brass coupling nut Standard plug body T barb fitting For low current AC applications 6.2 mm OD Flexlife cable
content loaded
content loaded
content loaded
- Attributes
- Features
- Substitute Products
| Amperage Rating | 4 A |
| Angle | IP67/IP68/IP69K |
| Cable Material | PVC |
| Cable Type | Jacketed |
| Catalog Number | U-32940 |
| Connector Material | TPU |
| Gross Weight Per Pack | 1 lb |
| IEC Rating | IP67/IP68/IP69K |
| Length [Metric] | 3 m |
| NEMA Rating | NEMA 1/3/4/6P |
| Number Of Poles | 6 |
| Returnable | N |
| Series | Right Angle Female x Straight Male |
| Standards | UL Listed, RoHS Compliant |
| Type | Double Ended |
| Voltage Rating | 250 VAC |
| Wire Pin Colors | Red/White/Green/Yellow/Black/Blue |
| Stock Status | NONSTOCK |
| Brand | Turck |
| Manufacturer | Turck, Inc. |
| Cable Length | 3 m |
| Connector Size | 1/2-20 UNF |
| Connector Type | Right Angle Female x Straight Male |
| Keyway | Double |
| -40 to 105 deg C temperature range |
| 6 x 22 AWG conductor/cable size |
| Yellow conductor and outer jacket cable color |
| Nylon contact carrier |
| Gold plated brass contact material |
| Nickel-plated brass coupling nut |
| Standard plug body |
| T barb fitting |
| For low current AC applications |
| 6.2 mm OD |
| Flexlife cable |
